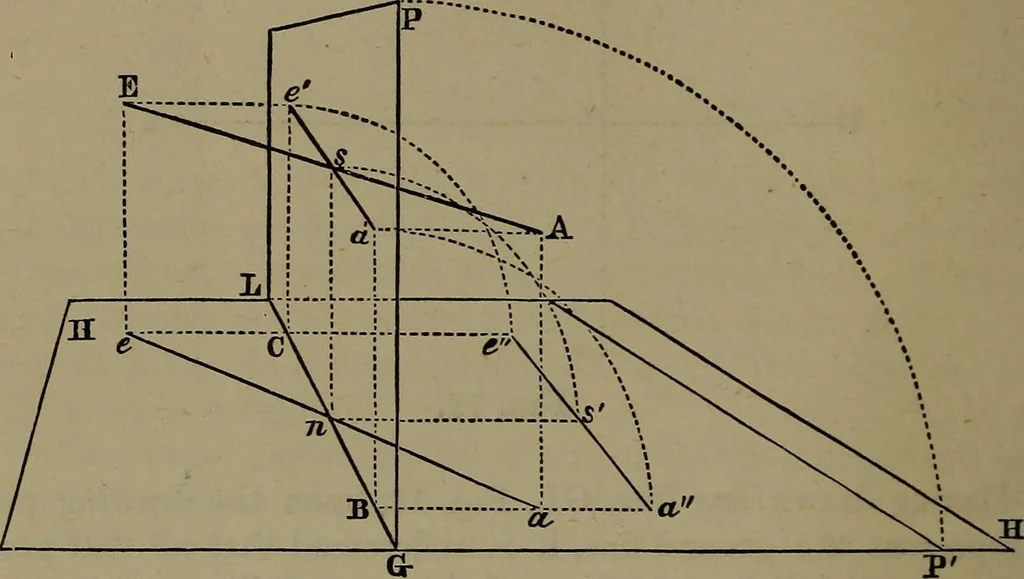

plane in its 7^eal position; second: a similar view after the revolu-tion of the perspective plane into the plane of the paper ; andthird: an actual construction of the real perspective of a point. 64. In Fig. 13, E is the position of the eye, e is its horizontalprojection, and e is its vertical… … Fig. 13. A is the point, whose perspective is to be found, a is its horizontal projection, and a its vertical projection. Ba -= Ka showsthe height of A above the horizontal plane GHH; aB aAshows its distance behind the perspective plane LGP, and CBshows its distance to the right of the observer…
