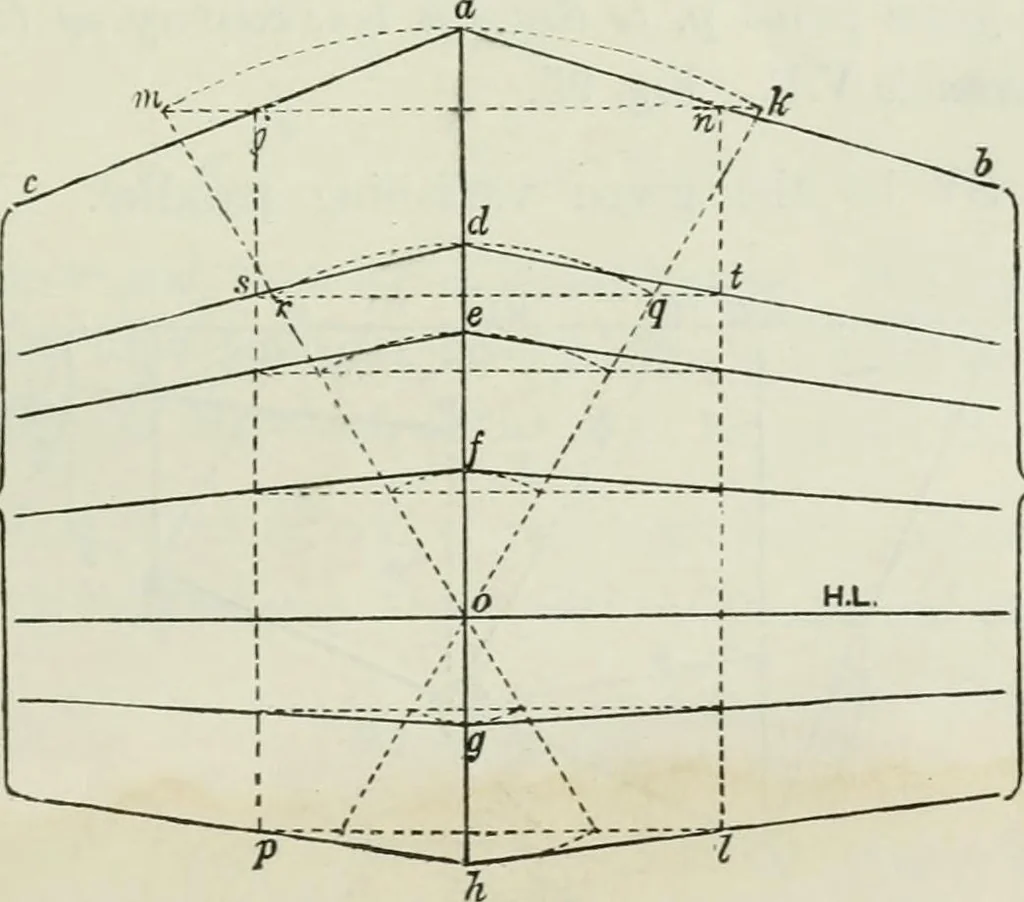

ah. Draw a line from h to e, intersecting the line/C \nj. Then/is the lower end of the required vertical line,for by the principle illustrated in Fig. 92, Cj:jf: -.Qe-.hf. Produce fh and make fi = 4, using the I scale. Join zC.Draw a vertical line at / to meet the line iC in k. Then jk isthe… … Fi.. 94 \7& V.R Let ah be the vertical line, ah and ac the given horizontallines, and d the given point. 128 COMPLETE PERSPECTIVE COURSE With 0 as centre (the intersection of the given vertical linewith the H.L.), and the distance of a as radius, draw an arc; atany convenient height draw a…
