Machine drawing; a practical guide to the standard methods of graphical representation of machines, including complete detail drawings of a duplex pump and of a direct-current generator (1914)
Griffin, Charles Lewis, 1867-, Adams, Charles Clyde, 1882- joint author · Chicago, American technical society · leaf 95

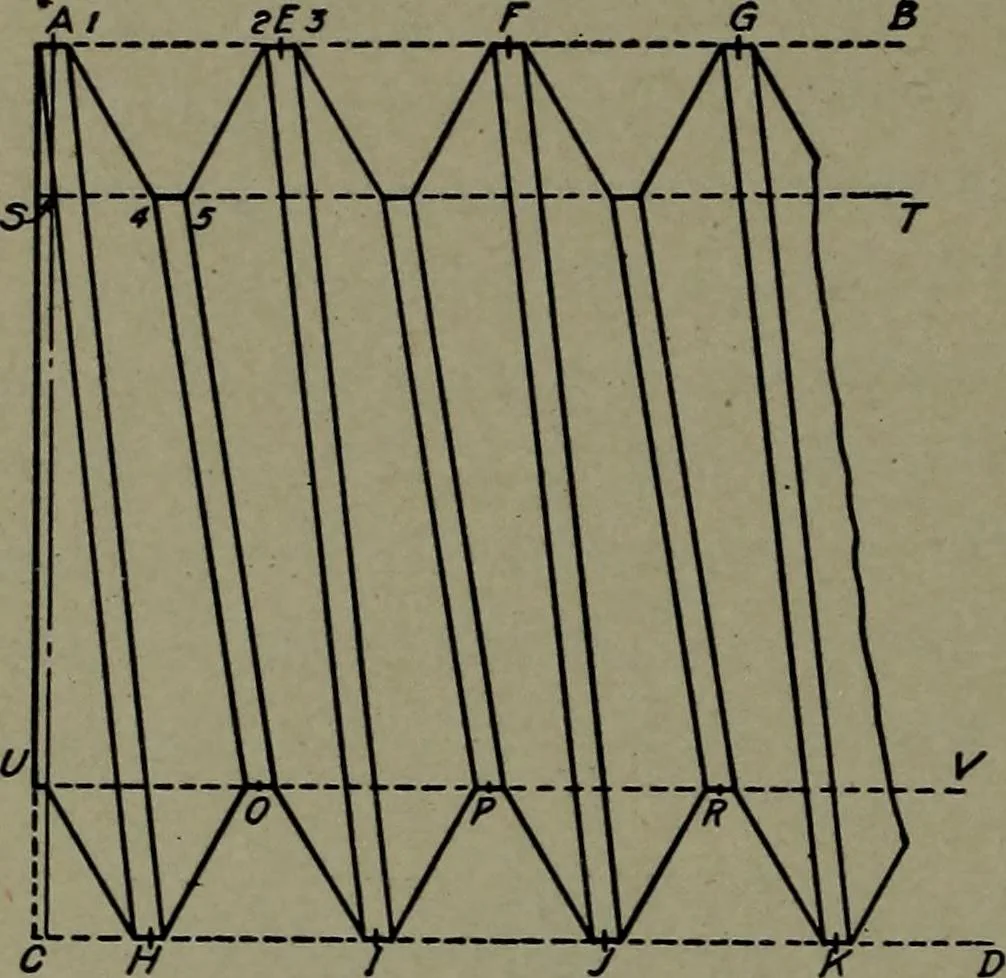

HFig. 73 Conventional Drawing for Right-Hand V Thread 82 MACHINE DRAWING … Fig. 74. Conventional Drawing for U. S.Standard Thread A a distance Al equal to TV of the pitch; and on each side of E, F,G, H, etc., lay off E2, E3, etc., each equal to iV of the pitch. From the points thus found, draw lines1—4> ®—5> etc., making anangle of 60° with AB. The restof the…
Machinery
