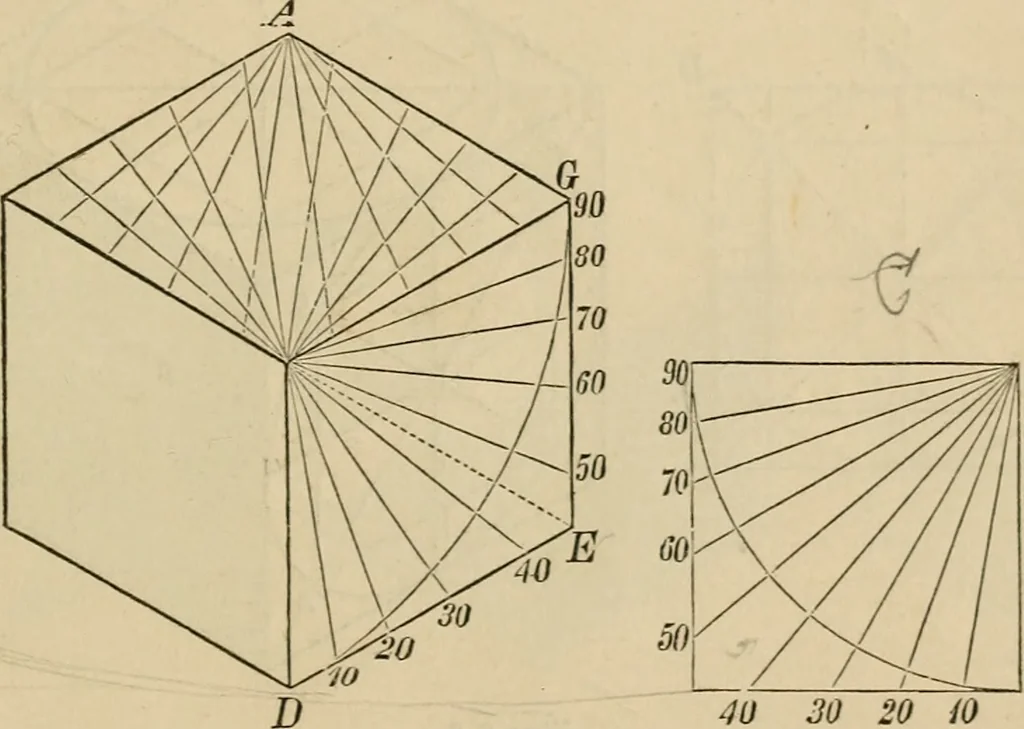

Fiss. 3. 4, 5. of these figmes will be easily understood by inspection, as they contain nolines except isometrical ones. To draio Angles to the Boundary Lines of an Isometrical Cvhe, … 30 20 iO Fig. 6, 7. Draw a sqnare C (fig. 6,) wliose sides are equal to those of the isome-trical cube A, and from any of its angles describe a quadrant, which di-vide into 90°, and draw radii through the divisions meeting the sides ofthe square. These will then form a scale to be applied to the…
