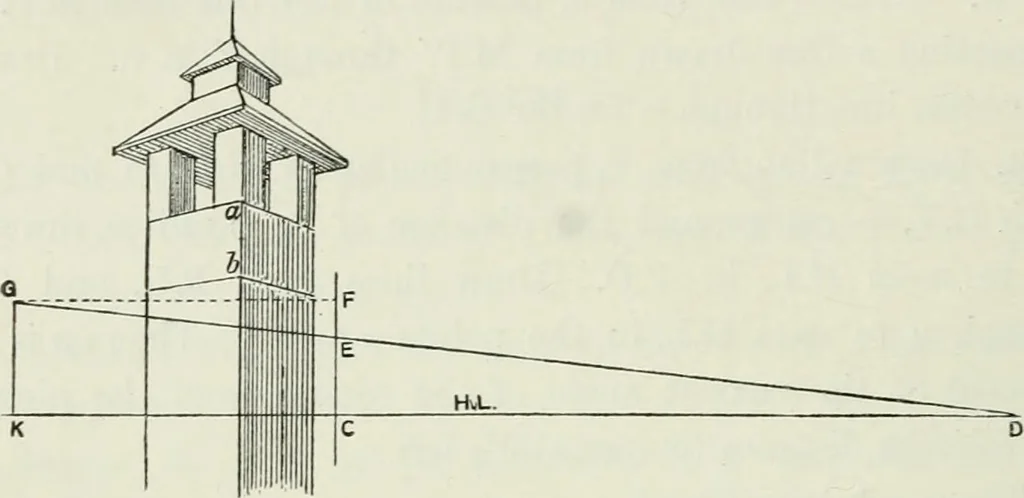

nt of distance (D) (Prob. 47). 140 COMPLETE PERSPECTIVE COURSE Draw a perpendicular through C, and assume it to be the edgeof the picture plane. Set up CE equal to ah, also CF equal to3 by the scale. Draw a line from D, through E, to meet ahorizontal line from F in G. Draw the vertical line GK.Then… … Fig. 107 scale of the drawing will depend upon the position of the P.P.So to determine from the perspective the distance of the realobject from the picture we must know the scale to which thedrawing is made [50]. Pkoblem 56 The supplementary slctch in Fig. 108 is fclc/i from the rieioshoivn in Fig.…
