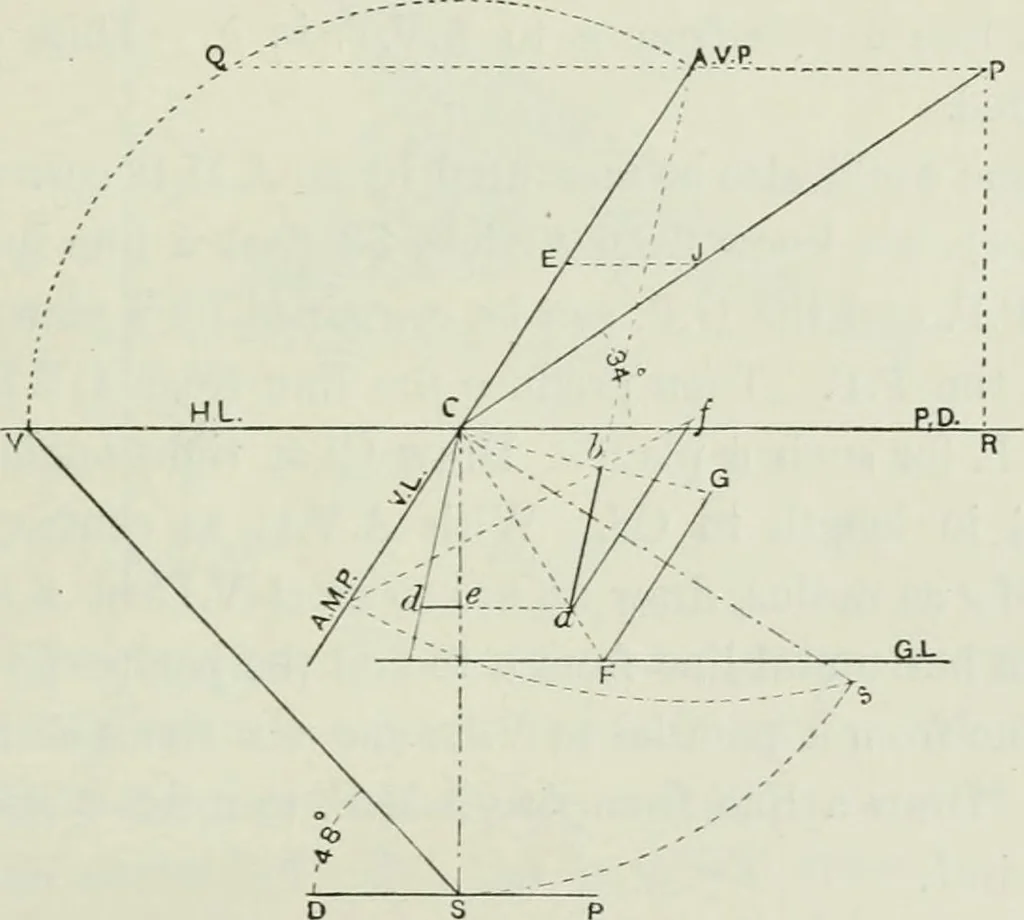

P.P. and G.P. SOLIDS IX COMILEX POSITIONS Problem 65 Ihmr ill perspective a line ^ l<niii,recedinij towards (he right,and inclined to the P.T. at an antjh of 48, and to theG.P. at an angle of oA:^: the lower end of the line to meetthe G.P. 3from the P.P. and o to the spectators right. Distance… … Fig. 130 an angle of 48° at S with DP, and produce the line to meetH.L. in V. Then SV is tlie generatrix of a cone [52]. WithC as centre, and radius CY, draw an arc to represent a portionof the base of this cone on the P.P. Draw a line at C, making, with ILL., an angle of 34°, and])roduce the line…
