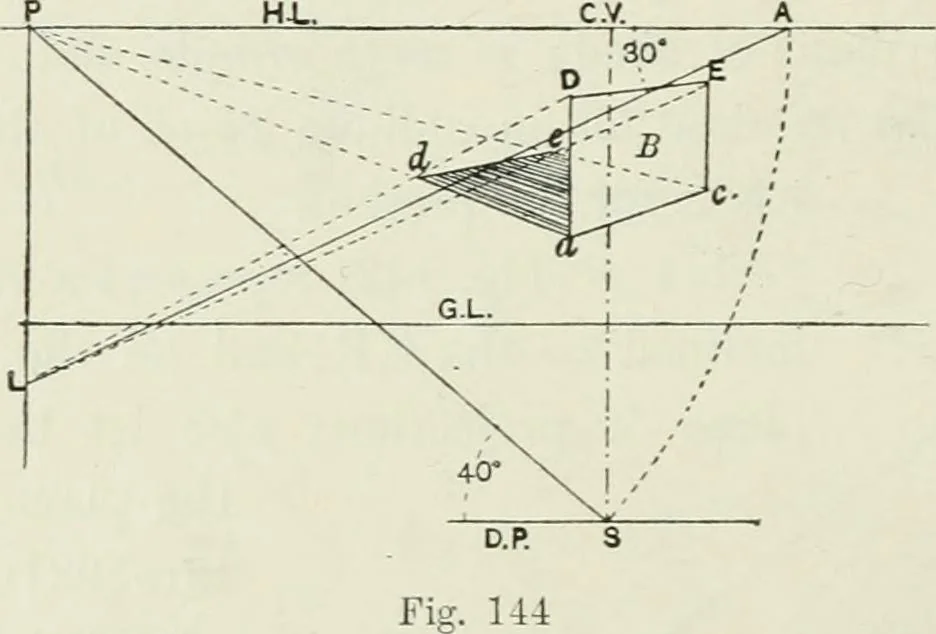

th D.P., and produce it to meet H.L. in P. Draw a verticalline at P for the V,L. of the plane of shade. With P as centre,and radius PS, draw an arc to meet H.L. in A. Then PA isthe distance of tlie spectator from the Y.L. Set off at A, withH.L, an angle of 37°, and produce it to meet the A^.L. in… … Let B (Fig. 144) represent a similar plane, and let the G.P.still be the plane of projection; but let the sun be in front of thepicture [97] in a vertical plane, receding to the left and inclined tothe P.P. at an angle of 40°, and at an altitude of 30° above the G.P. Draw a line making an angle of…
