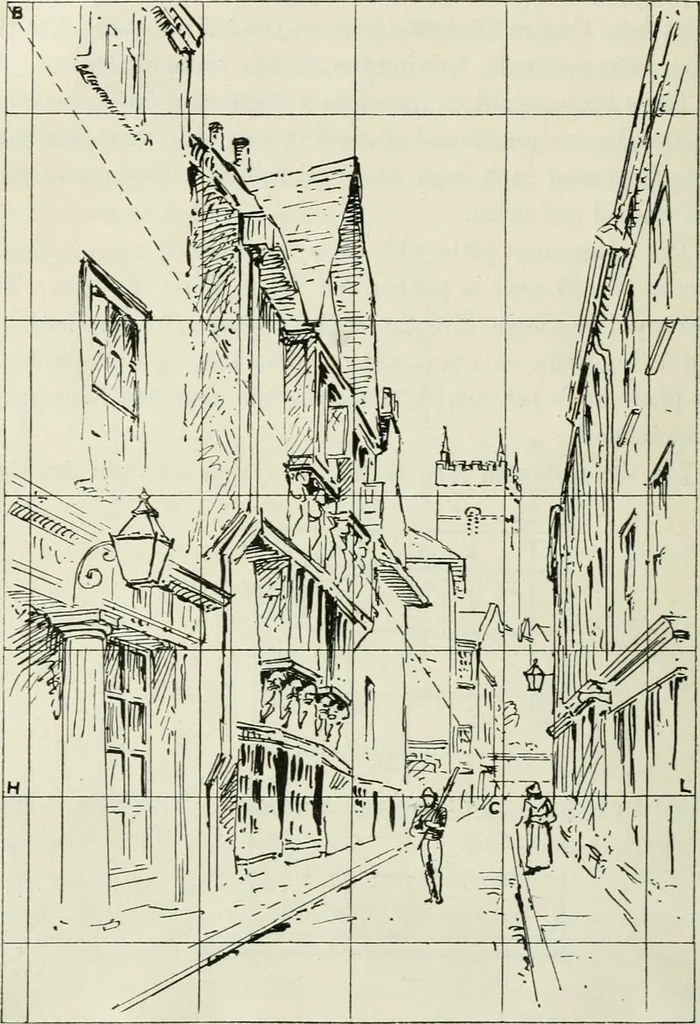

hotograph taken M-ith tlie same lens, and the photographis not injured. Let the rectangle ABDG (Fig. 189) represent our drawing. ■ // ^\ ^ - / 0- ^- X * \ / // \ H / V \ c ~^/ ^~^ ^v ~^. ,^ ^v -. G —^ -D Fig. 189 This may be drawn to any scale to suit the size of the drawing,but the sides of the… … Fi.. 190 spending positions to those shown in Iig. 188. Join CB, as before,and draw a line from C at right angles to CB, as CE. Set off anangle of 60 at B Avith BC and produce the line to meet CE in 1^. XVI PHOTOGRAPHIC PERSPECTIVE 281 Then BEC is equal to half of the angle of distinct vision…
