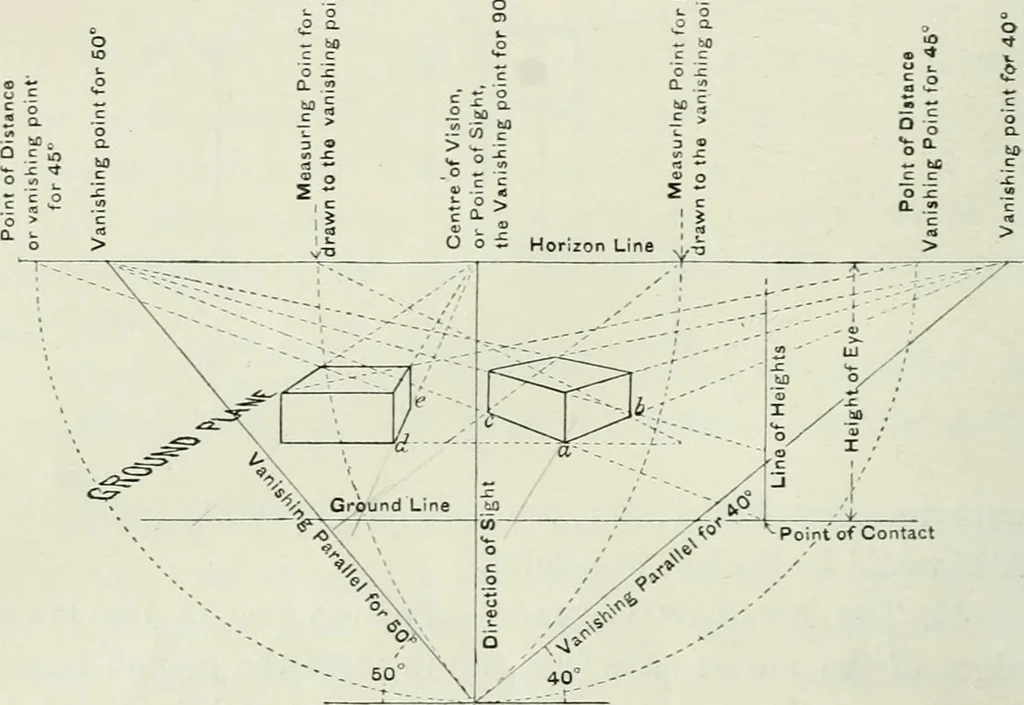

his chapter. The line ah is receding to the right at an angle of 40 ; tlieline ac is receding to the left at an angle of 50: and Die line(Jc is at 90 with the picture plane. 36 COMPLETE PERSPECTIVE COURSE These angles are set off at the station point, from thedirecting line, and vanishing 2^?o//f/s… … Directing »- Line Fig. 37 picture plane, as shoAvn in Fig. 37; the direction of sight isperpendicular to the picture plane, as shown in Fig. 38, whichis a perspective view showing their relative position. Thevanishing parallel for ah (Fig. 38) is parallel to the line ah,and determines its V.P.; in…
