Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 83

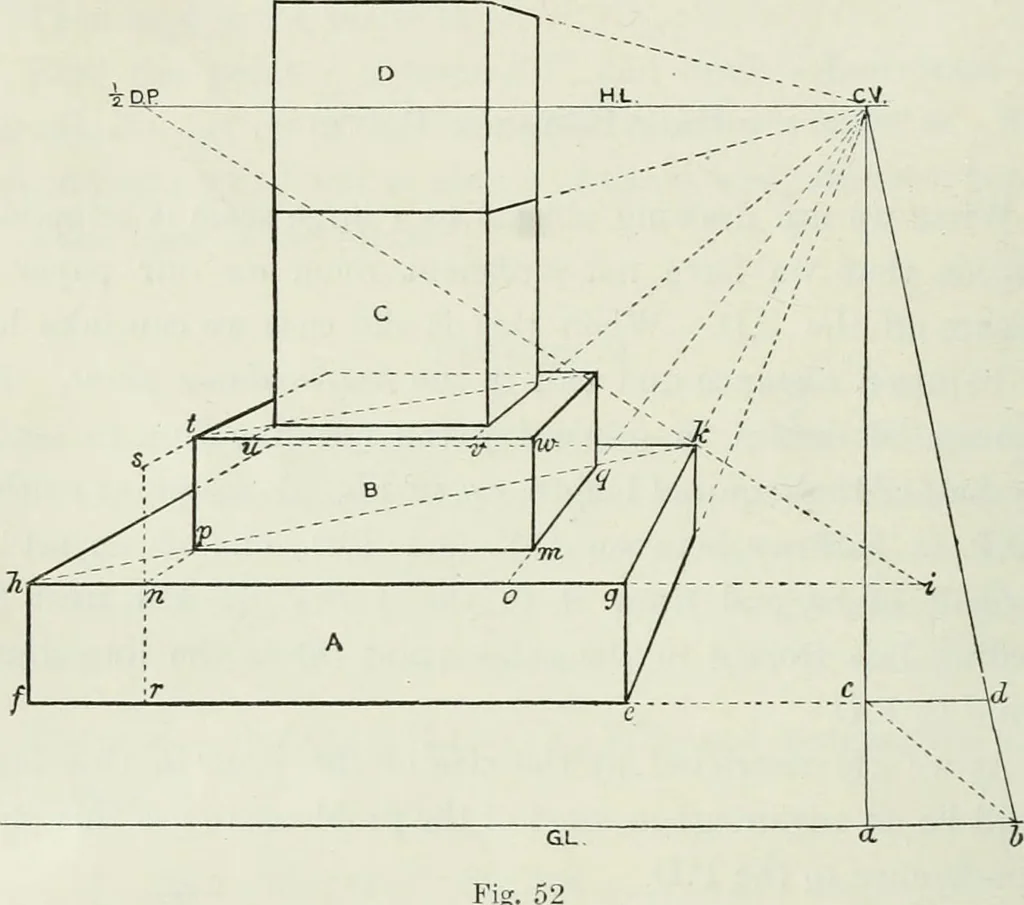

to spectators left.Distance of PP. = 10. Height of cyr^b. Sccde V=V. Fig. 52. Determine the G.L., H.L., C.V., and perspective scale, as in 6o COMPLETE PERSPECTIVE COURSE Prob. 5. As the distance of P.P. is 10, take half this distancefrom C.V. along H.L. for the | D.P. As ah = 1, a line drawn from h… … perspective foot, and complete the front of A. Draw the recedinglines to C.V. To measure 5 on the receding line from q, set off gi = 2htimes cd, and draw / to | D.P., then gk = o. Complete A anddraw the diagonal Jtk. As B is 2 smaller than A, there will bea margin of one foot round B. Set off hn…
