Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 75

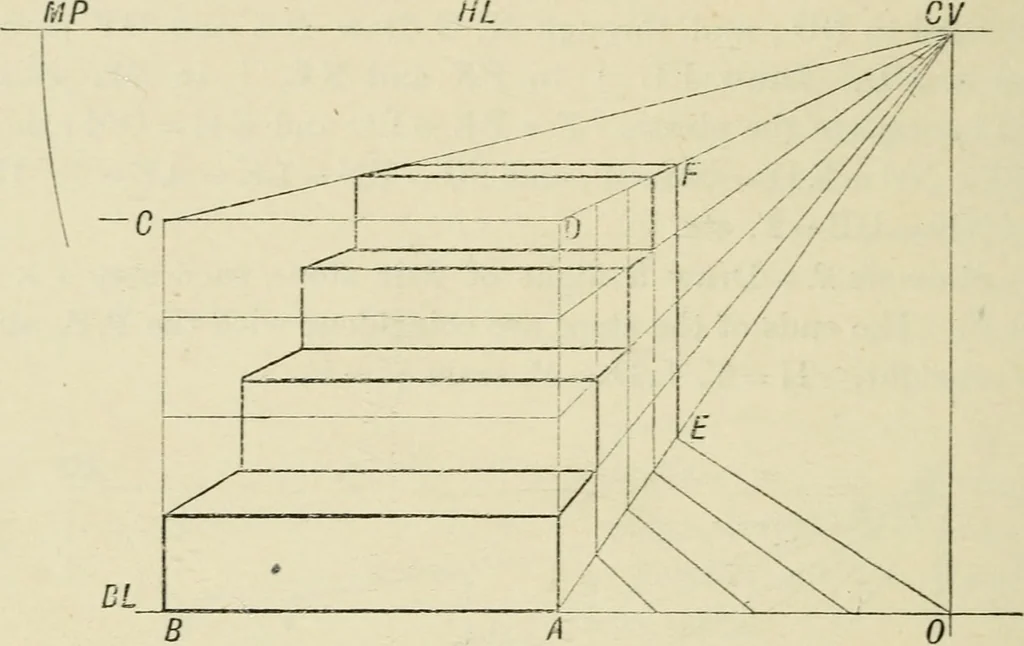

Fig. 40. Here take A, 4 to right of E, and B 4 to right of A : onAB describe square ABDC, and divide it into sixteen equalsquares; join each angle, as shown in figure, with the C.V.;join also E MP, cutting A C.V. in F; draw FG parallel toAC, GS \__ to GF, etc. Then FG = AK-r, and GS = KN= 1, etc.;… … Fie:. 41. Draw H.L., B.L., and find C.V. and MP as before. TakeA, i to left, and B, 4 to left of A : on AB construct squareABCD : join O MP; and on AE, complete square ADFE :then draw steps similar to preceding example. Exercise IX. (H = 6, L.D. = 4, scale Y=l.) ithin P.P. parallel to it, and 1.…
Geometrical drawing · Perspective
