Concrete bridges and culverts, for both railroads and highways (1909)
Tyrrell, H. G. (Henry Grattan), b. 1867 · Chicago The M.C. Clarke publishing co. [etc.] · leaf 40

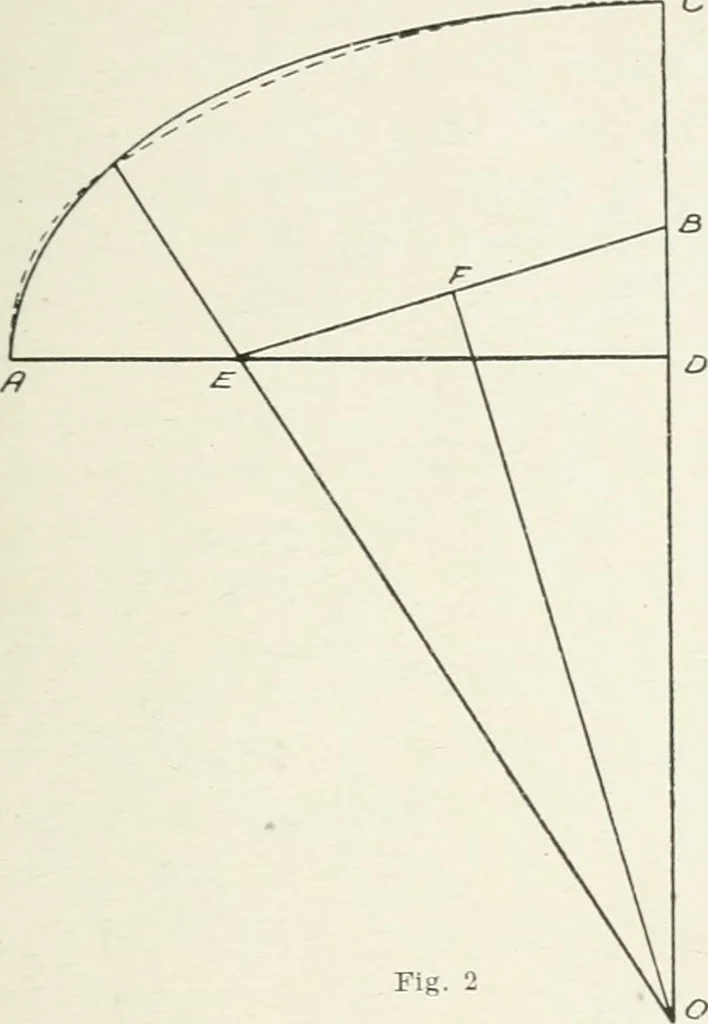

e semi-minor axis. Join BE and bisectthe line BE at F. Through F draw a perpendicu-lar to BE. intersecting the line CD at 0. The twojioints 0 and E will be centers of two circular arcswhich will form an approximate ellipse. By firstselecting the position of the point E so the circulararc described… … 22 CONCRETE BRIDGES AND CULVERTS. Five-Centered Arch. A method for drawing a five-centered arch is asfollows:— In order to check on the work, it is advisable tofirst draw tlie form of the true ellipse by the method given above. InFigure 3 the twocurves so closelycorrespond thatonly one can beshown.…
