The construction of wrought iron bridges: embracing the practical application of the principles of mechanics to wrought iron girder work (1858)
Latham, John Herbert · Cambridge : Macmillan · leaf 151

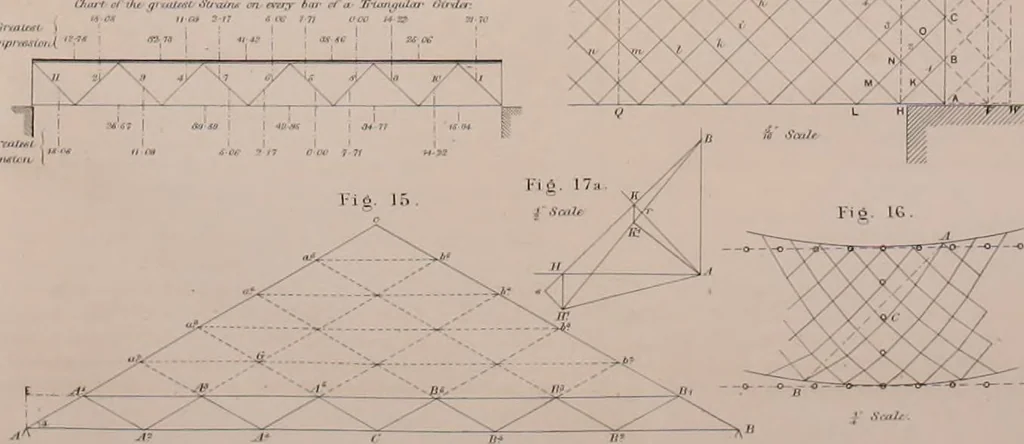

c Fig 11 r , H/X/ Fig. 17. ■ ! ■ i ? L *tp« … THE LATTICE-GIRDER. 121 above the next rivet towards the centre line, and as much belowthe next rivet towards the pin. But as this kind of construction would be liable to injurethe booms, and, moreover, is impossible with a moving load, thebars are therefore continued through the centre, and, at…
Bridges, Iron and steel · Girders
