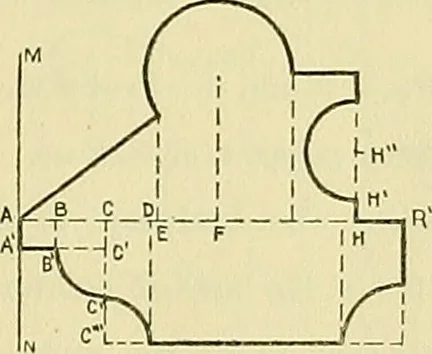

Haiisteins Consttilctive Drawing. 44.—Figs. 1 and 2.—Problem—To construct a poly-gon equal to a given one, radiating in a circle. Solution.—^Let A E D G, etc., be the given poly-gon. Describe with A D, A E, etc., as radii and Aas center the circles C D, E F G, etc., and makeF E = F E, F G = F G,…
