Constructive drawing. A text-book for home instruction, high schools, manual training schools, technical schools and universities (1904)
Hanstein, Herman. [from old catalog] · Chicago, New York [etc.] Keuffel & Esser co. · leaf 68

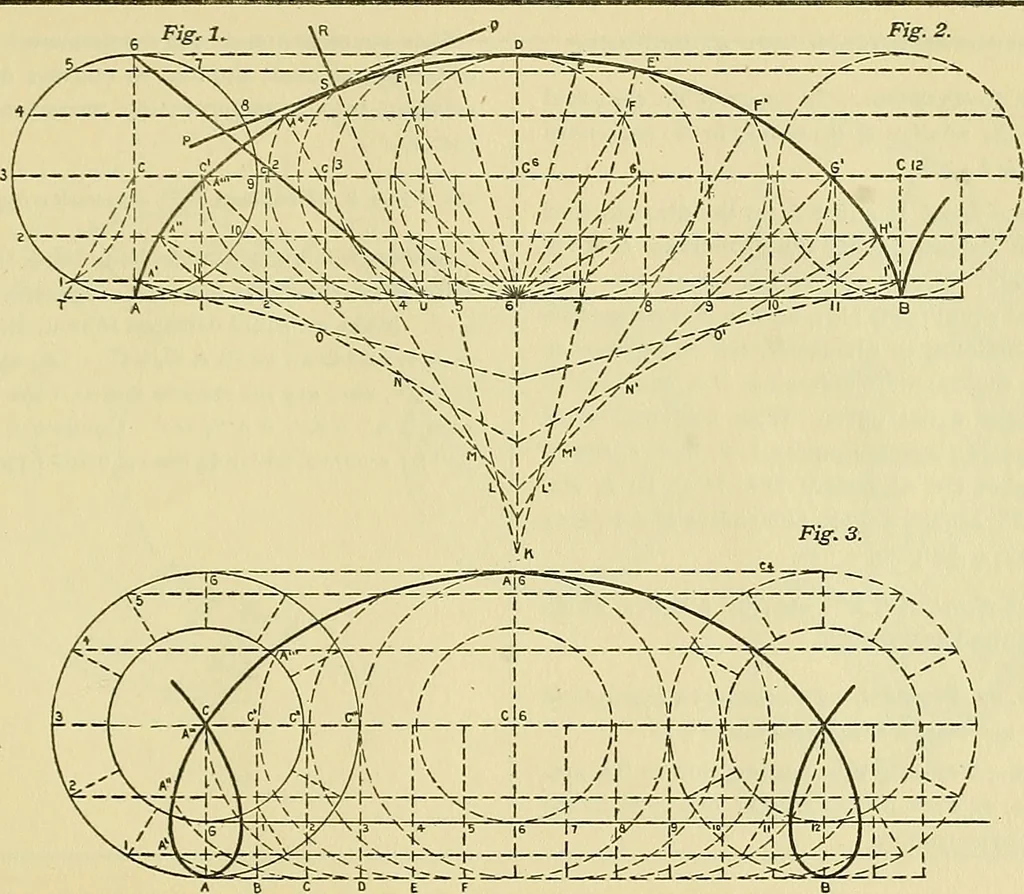

ating the curve is situated at a greater radiVjS than the rolling circle. Solution.—Let C G be the rolling circle, G 13 its rectified circumference and A the generating point. Describe with C A from C a concentric circle and proceed in this construction as in Fig. 1. Pass horizontals through the… … HansteWs Constructive Drawing. GEAR LINES—EPICYCLOID AND HYPOCYCLOID. 134.^—Fig. 1.—Problem.—To construct an epicycloid when the relation of the rolling to the stationary circle, is 1 : 2. Solution.—Liet A B and 6 A be the diameters of the given circles, having the proportion of 2 : 1,…
