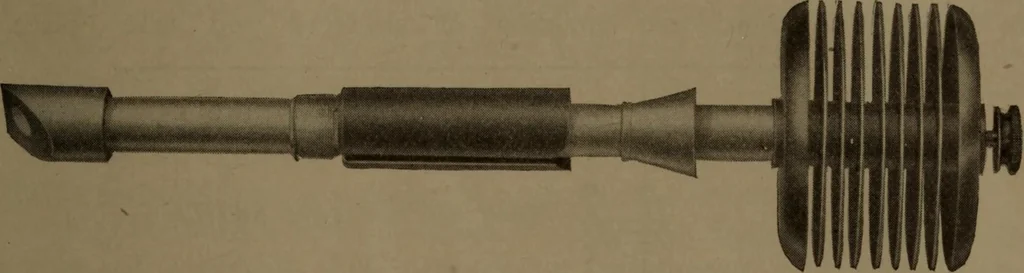

he Radiator Type Tube quite small. The bulb measures 3^ in.In diameter and the over-all length of the tube is approximately 19 in. Coolidge XRay Tube 8qij6B-ij CATHODE The filament, Fig. 8, which forms the cathode of this tube, issimilar to that of the Universal Type Tube. FOCUSING DEVICE This… … Fig. 9. ANODE OF RADIATOR TYPE COOLIDGE X-RAY TUBE THE ANODE The anode stem consists of a solid bar of copper 1.6 cm. (5^ in.)in diameter which is brought out through the glass of the anode armto a copper radiator. The head of the anode consists of a mass ofspecially purified copper which is first…
