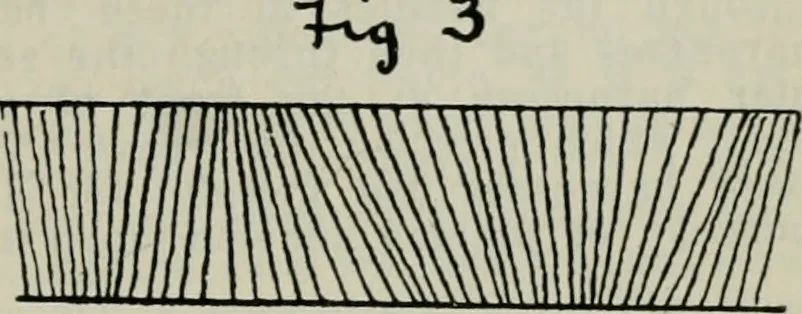

Fabrics like Figs. 1 and 2, or ofcombinations of these two effects, maybe made with similar loom attach-ments or devices. The attachmentgenerally used consists of a suitablemechanism, varying in detail with dif-ferent makers, for imparting to the reed, which is very deep, an up-and-down movement,… … The top, bottom and face of thereeds are straight, as in ordiiiavyIeeds, For weaving filling ondules thesame device may be used for actuatingthe reed. The reed itself is madeafter the form shown in Fig. 4. Thesolid line indicates the top, and thedotted line the bottom of the reed.The dents are…
