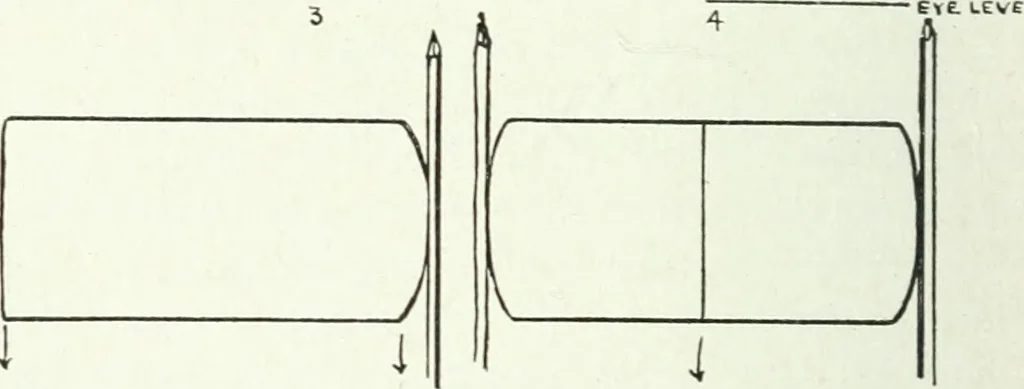

THE FORESHORTENED CIRCLE iGt; ART the ellipse, thus ensuring a curve at each end of the long diameter. In verticalellipses the line should begin with a downward movement at the right end of theshort diameter. THE CYLINDER EVE LEVEL 7^ ■^ e>E ucviL … TO LEFT OF EYE OPPOSITE EVE TO BI6HT OF EV6 OPPOSITE CYE 6 7 THE PRAWTXf; OF THE rYT.TXDER The drawing of the cylinder should follow a study of the foreshortening of thrcircle. Each member of the class should roll a sheet of drawing paper to form acylinder six inches tall, which may be fastened…
