Cotton mill processes and calculations. An elementary text book for the use of textile schools and for home study .. (1902)
Tompkins, Daniel Augustus, 1851-1914 · Charlotte, N.C., The author · leaf 131

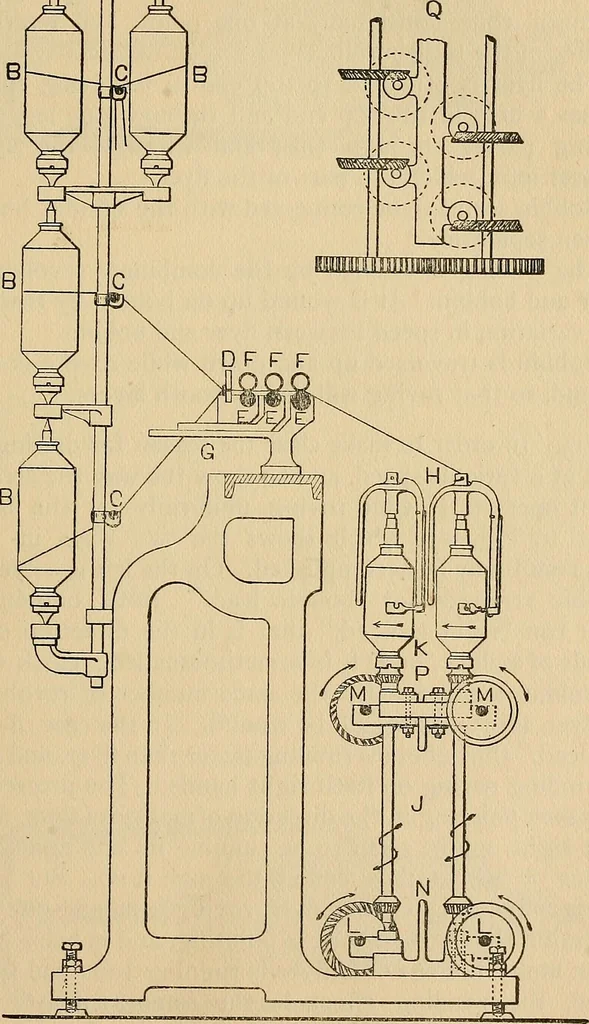

evel Gear. Q. Top View of Spindles and Gearing. Roving Frame.—PROCESS. Bobbins are put in creel, the roving passed over guiderods, through guide eyes and between bottom and toprolls. Generally two ends are run together and drawninto one. The rolls, having differing speed, as in drawing frames,draw… … Fig. 24. Roving Frame Section. Il8 STUBBING AND ROVING. The guide eye D, through which the roving is threaded,has a slow traverse motion to prevent roving being fedthrough rolls continuall}- at one point, and wearing agroove in the leather roll. The flyer is attached to top end of revolving…
Cotton manufacture
