Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 832

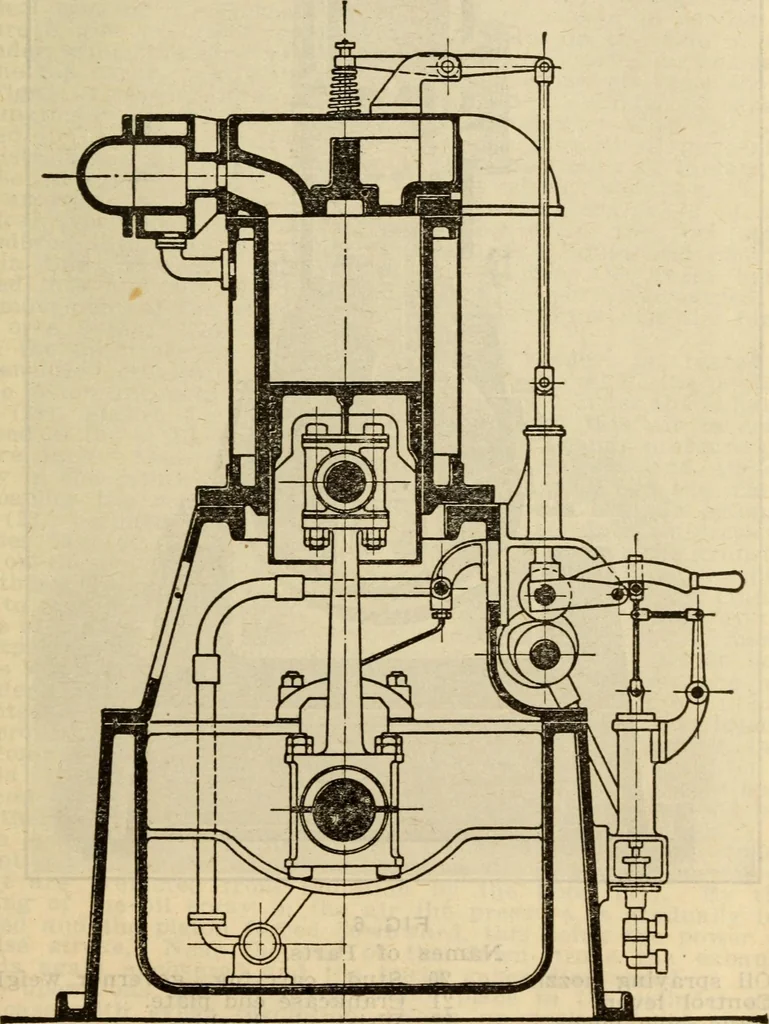

of the injection pump is used for this purpose,the conduit u serving to transmit this pressure to the pilot valve S,Hornsby-Akroyd Oil Engine.—In this engine, a sectional view ofwhich is shown in Figure 4, the oil is first introduced in liquidform into the vaporizer shown at the back of the… … FIG. 5 Hornsby-Akroyd vertical engine. 810/ Steam Engineering
