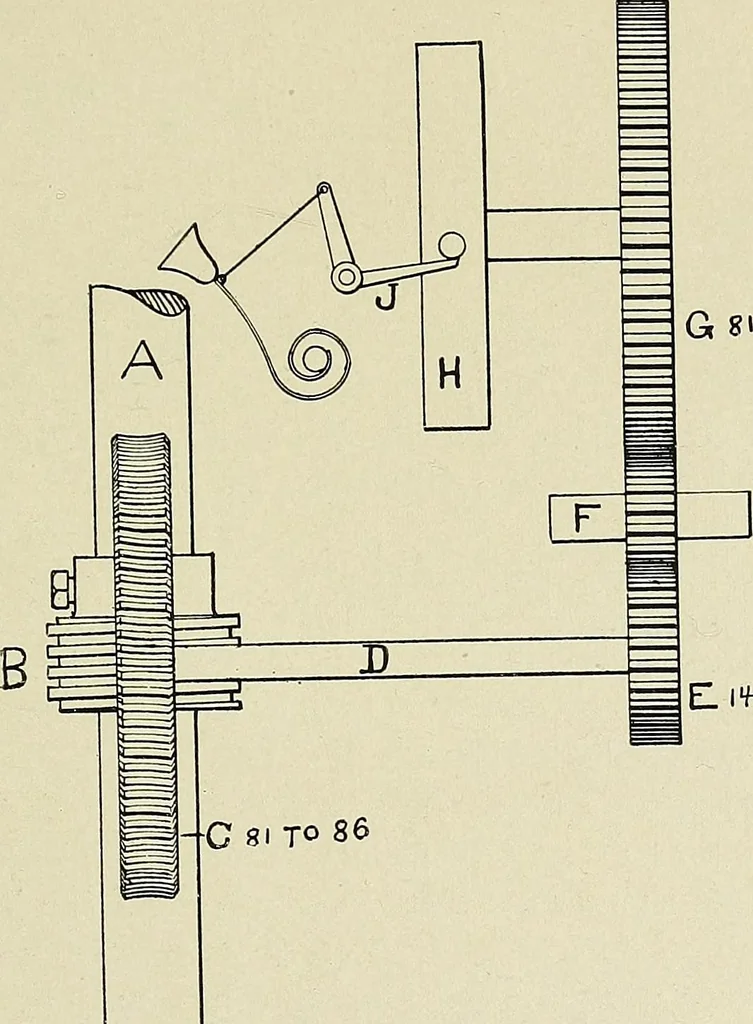

procketwheels with 30 and 10 teeth, so that main shaft runs 1-3the speed of measuring- roll. If measuring roll is 24 inchesin circumference, it will (le]i\er 8 inches for every revolu-tion of main shaft. 376. To simplify the calculations, we shall treat themain shaft in Fig. 51 as a roll of 8… … G glTo86 E ifjos-s _--^ Fig. 51. Measuring Motion. 276 This works out 47. Any of the gears may be changed toalter this length, but for the sake of uniformity with theother formulas, we will consider the gear E as the changegear for ordinary purposes. This gear (35) is in thedenominator of above…
