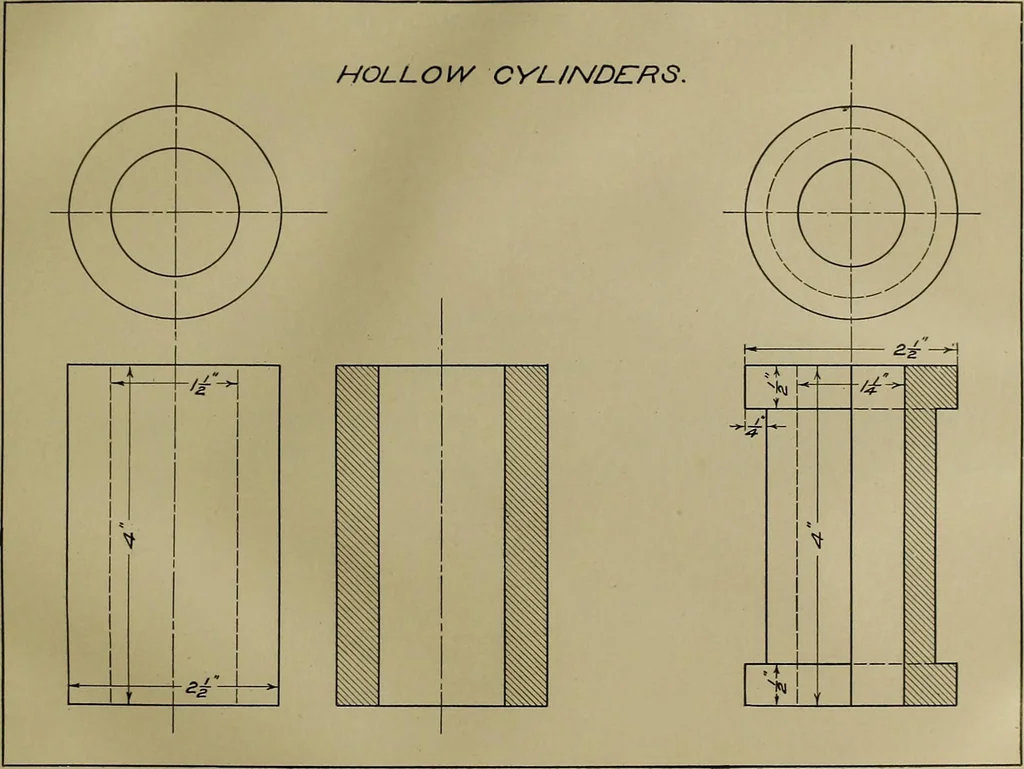

the top and bottom. In practice,when an object to be sectioned is the same on bothsides of its centre line, only one side is sectionedwhile the other side is drawn in full. This method ishere shown. In the front view, the part to the leftis drawn in full and that to the right is drawn insection.… … 22 COURSE IN MECHANICAL DRAWING. SHEET VI. Mortise and Tenon Joint. An application of some of the foregoing principles cut in the centre of the end piece, into which a tenon, is here made in a simple working drawing of a cut upon the other piece, closely fits. This is clearly mortise and tenon…
