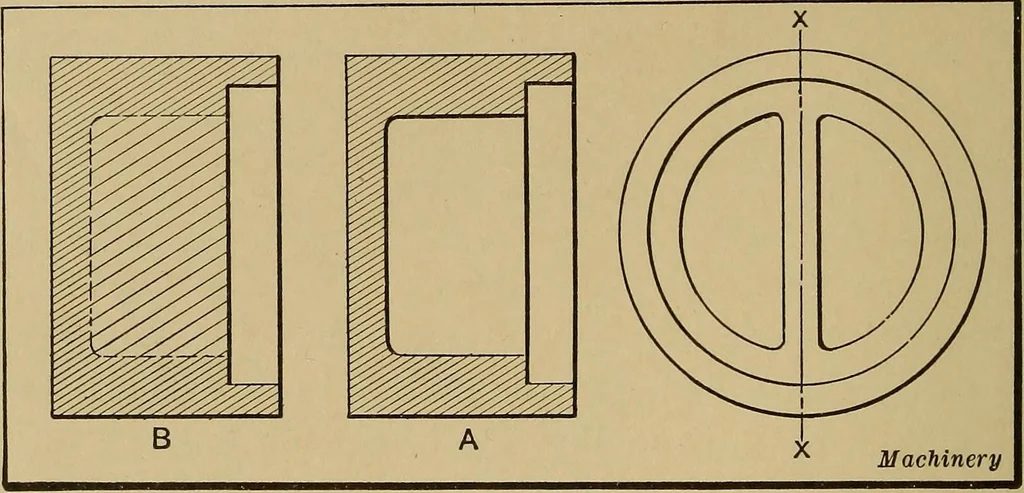

e is shown on the end. Sectional Views of Ribbed Parts. — The purpose of any-drawing is to be useful, and to this end care should be exer-cised in the use of conventional or common methods of repre-senting parts in drawings so that they will not be misleading.Just as orthographic projection cannot… … Fig. 9. Two Methods of showing Section of Casting having aCentral Rib and ribbed constructions. A number of cases are illustratedand comments are made on the various methods of represen-tation. These are only types, and are not intended to coverevery possible case, but simply to illustrate possible…
