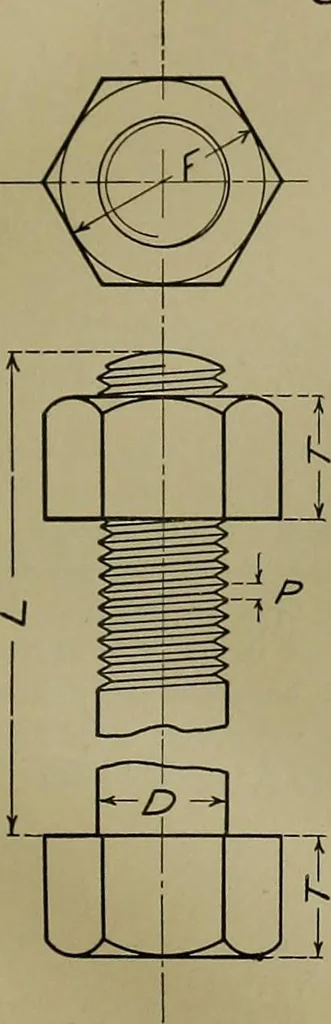

A hexagonal nut may be drawn with close approx-imation to accuracy by the following method, whichdispenses with the drawing of the hexagon: Firstdraw the centre line of the nut, and then the top andbottom lines equal to the diameter of the bolt. Drawthe front face slightly narrower than this… … STANDARD BOLTS --° MUTS.
