A course in mechanical drawing for evening schools and self-instruction (1896)
Rouillion, Louis · Boston, New York, The Prang educational company · leaf 81

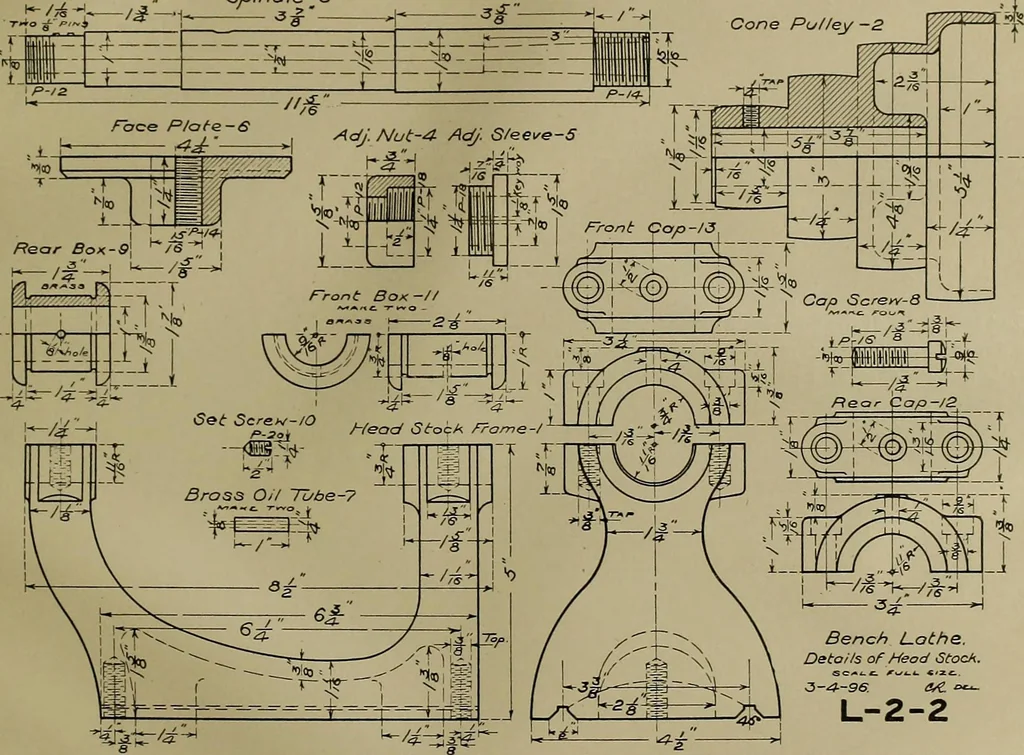

making correctly proportionedsketches. From these sketches the mechanical draw-ing is made in pencil. As every one cannot have amachine to take apart and make sketches of, thestudent may consider these sheets as sketches andmake his drawings directly from them, working to thegiven dimensions. Each… … Bench LothQ.Details oF Head Stock. 3-4-96. AC L-2-2 74 COURSE IN MECHANICAL DRAWING. SHEET XXVII. Bench Lathe—Details of Tool Rest. But two views of the post are necessary to give allthe dimensions; the bottom view shows a little moreclearly the shape of that part of the post. The tap(internal…
Mechanical drawing
