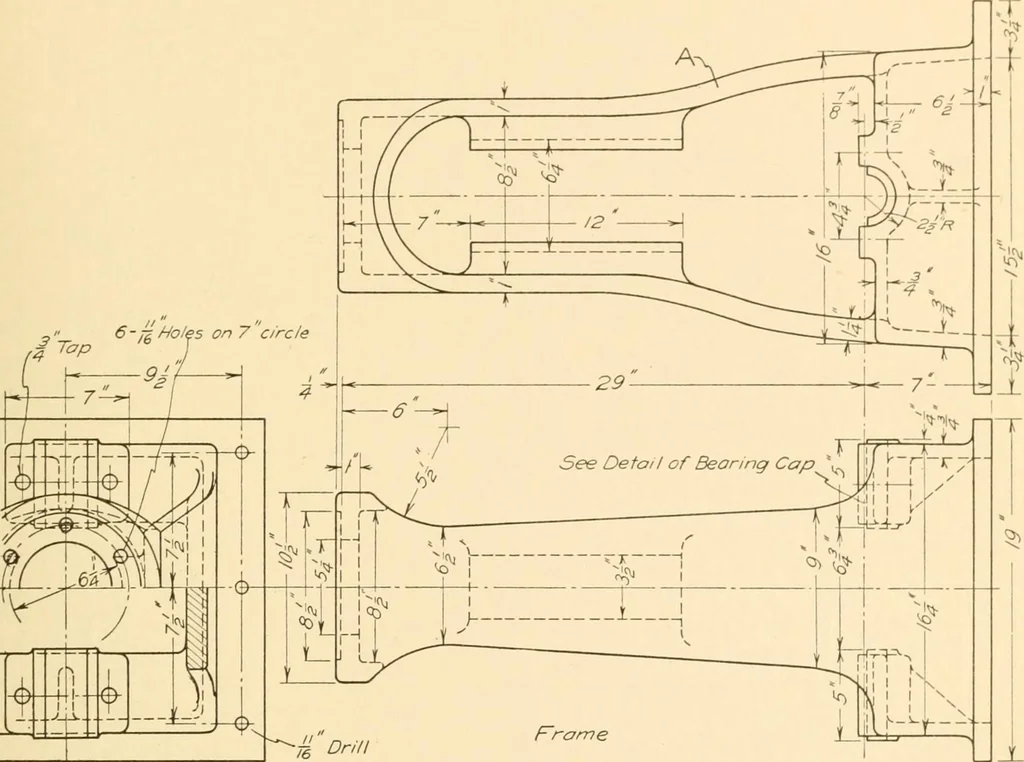

D/am. 192 Fig. 821. Prob. 166. Crosshead. PROBLEMS AND STUDIES 193 … •/-fe Drill Fig. 322. Prob. 168. Frame. ASSEMBLY AND DETAIL DRAWINGS 203. The drawings of a STEP BEARING, STEAM KETTLE, and PLUNGERPUMP are intended for reading problems as well as to give practice in apphdng theprinciples of drafting. When assembling or detailing, check each piece with the…
