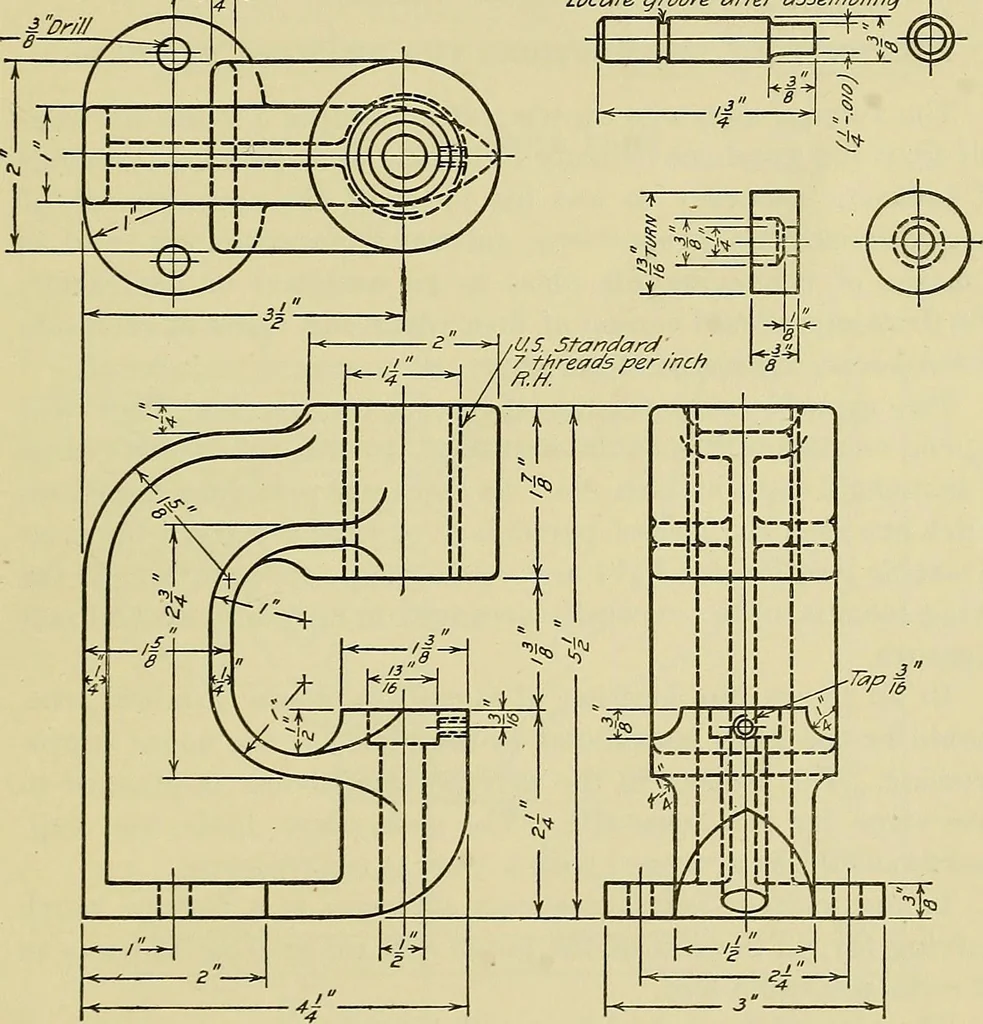

^-^ Locate grooi^e offer assembJingA— \ ■—f >Tr … Fig. 331. Details of Screw Punch 292 MECHANICAL DRAWING Required: To make a pencil mechanical drawing from thedetails of the objects shown in Figs. 830A and 330B or 331, or anysimilar problem assigned by the instructor. It is suggested thatan assembly drawing may be made from the student detail…
