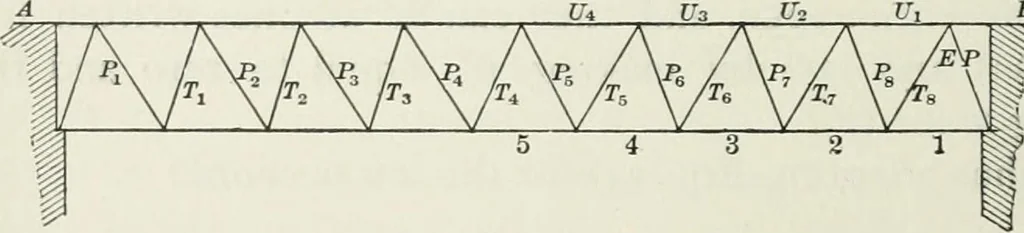

r iseven. These complete all the expressions for stresses requiredfor this truss used as a through structure. Case V.— The Truss of Fig. 4 used as a Deck Structure, Fixed Loads. The formulae of Case III. are to be applied for the stressesin this case precisely as they stand, with the notation as… … Fig. 5. intersecting in the lower, or unloaded, chord will be affectedby the same subscript. The remaining notation will be thesame as that used in connection with Fig. 4, including theuniform moving panel load w, and depth of truss, d. Let p — d tan (x = p,Let p — d tan a = p. 7RUSSES WITH UNIFORM…
