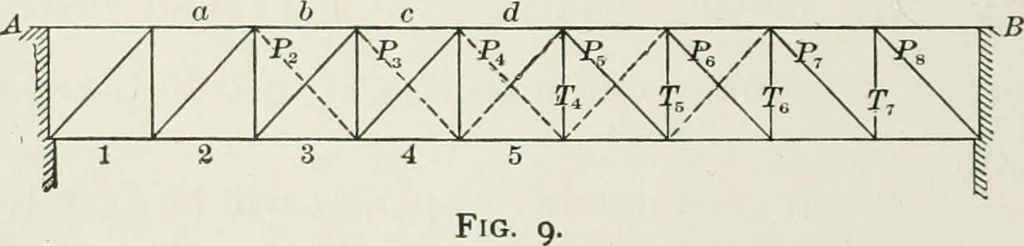

n the proper value, which will be greaterthan the limits indicated above. Any main member Z„ will have the stress: (7;)= +n(^^)^^^~i .... (83). The lower chord stresses can be written at once from Eq.(80): {n) = -I {N — n ■{- i)w tan a . . (84). As before: W=-(3) fetc.= - («) J (85). Expressions… … vertical braces {T^ are so written as to make each pair ofweb members intersecting in the lower chord take the samesubscript. TRUSSES WITH UNIFORM PANEL LOADS. 20/ Fixed Load. The expressions for all the stresses due to the fixed loadare precisely the same as those in Case VIII., I., Eqs. (75)to…
