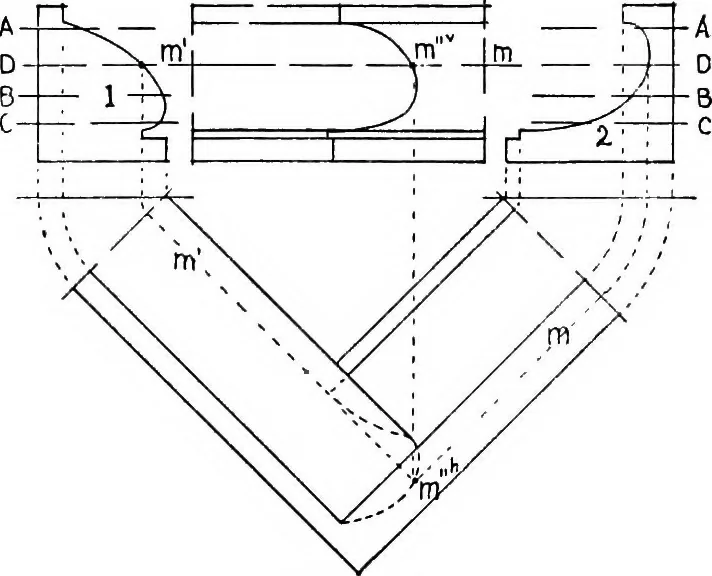

maybe secured at the miter by varying the angle between thecutting planes and elements, as shown in Fig. 213 (3). If the cutting plane is inclined, not only toward the elements,but also toward the plane of the base, as shown in Fig. 214(1), the mouldings will miter as shown in 214 (2). Besides… … Fig. 215 Mouldings that have difPerent profiles may be made to meetin various ways imder varying conditions. The cases described in §§ 195-197 areselected as beingtypical. 195. To Find theLine of Intersectionof Two Mouldings ofDifferent Profiles.In Fig. 215, let theplan and the profiles1 and 2 be…
