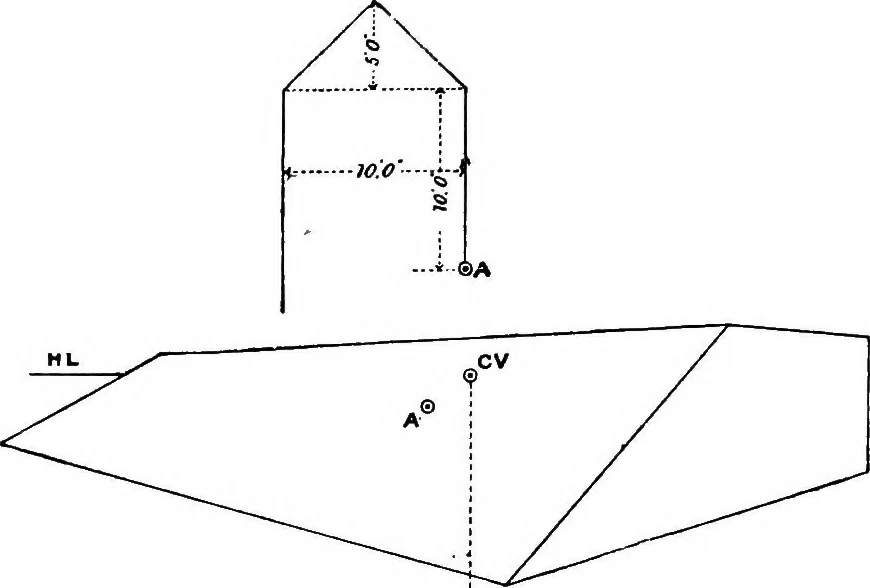

wing it. The studentshould find the V.P.s of these diagonal lines. They willvanish in a V.L. of the oblique plane of the rectangle. Question 5 (June, 1901). Diagram Q,. 5 shows in perspective a rectangularoblique plane rising from the ground-plane to an upper 244 Perspective horizontal plane. On… … Fio 185 —Diagram Q. 5. (The scale is \ inch to 1 foot.) a house rectangular on plan and standing on the ohliqueand upper horizontal planes. The gable end of the houseis to he of the dimensions shown in the small diagram, andto he in a vertical plane inclined 30° to the picture towards Solving…
