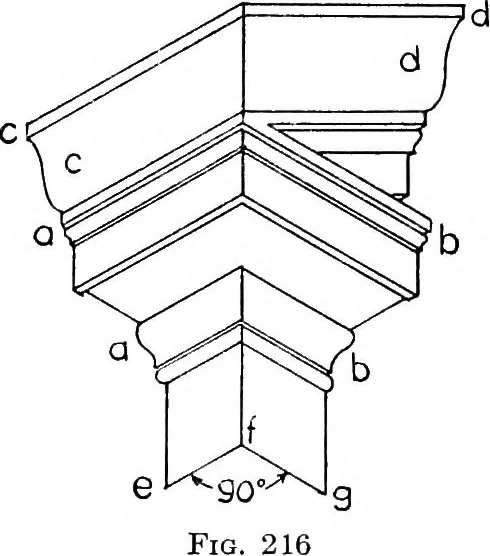

nt m on moulding 1.On plan, these two elements areseen to intersect at m. Byprojecting up from m* to theplane D, on the elevation, mis determined. One point on theline of intersection is now estab-lished. The principle involved isidentical with that of § 193. 196. Raking Mouldings. Fig-ure 216… … XI, § 196] APPLICATIOXS OF CHAPTERS ^^II-VIII 233 of c and d, however, involves a different principle. The levelmoulding, c, is made not only to turn the corner but also tochange its inclination to H at the same time. The moulding c iscalled the level moulding, while d is called the rake moulding.…
