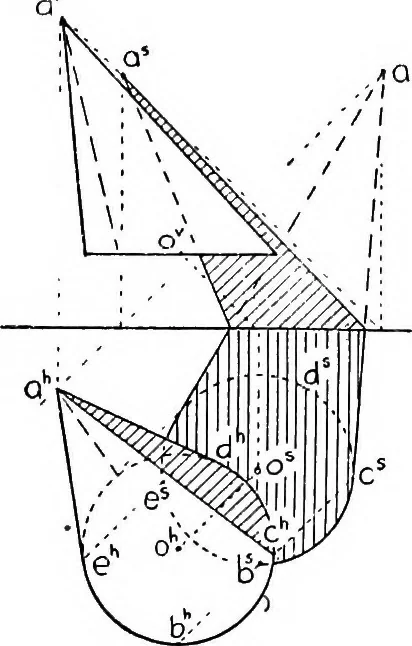

ght Line on a CurvedSurface. I. First Method. The umbra of a straight line is a plane.This plane will cut the given surface in a curved line, which isthe required shadow. If the source of light is a given point, pass a plane throughthe point and the given line, as in § 69, and find the… … Fig. 235 XII, § 214] SHADES AND SHADOWS 253 II. Second Method. The method given here is analogousto the slicing method of § 149, and furnishes the basis for thesolution of the following two problems. Let the hemisphere and the line ah, Fig. 236, be given, andlet it be required to find the sun…
