Young, George, jr, Baxter, Hubert Eugene, joint author · New York, The Macmillan Co. · leaf 294

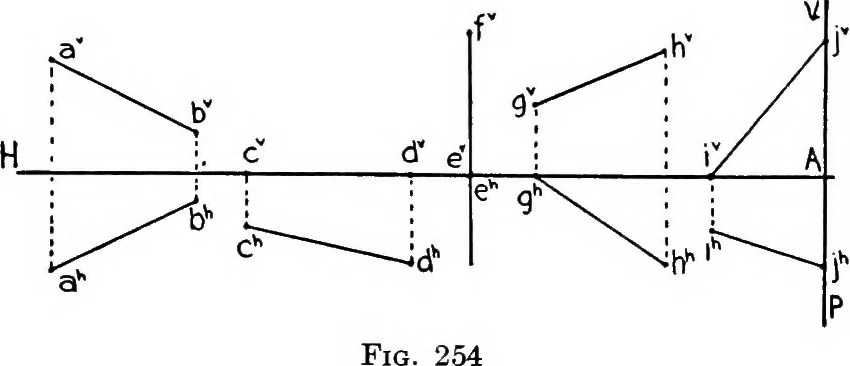

(62, 0, 9). Line ef: e (57, 0, 0); ef runs upward and to the right, / being 48from P- Line gh: parallel to HA, 17 from V and 9 from H; g is 44 from P,and ft is 34 from P. Line ij : is in ff, between 39 and 0 from P; running forward andto the right from i. Line kl: parallel to P; runs ownward and… … EXERCISE SHEET Vila (§22) Take P at the right, 18 from the border line, and turned away fromthe objects, into V. Profile projections are required for #3 only. Usenotation carefully. 1. The center of a square, abed, 10 units on a side, is at e (50, 10,10). The plane of the figure is parallel to H…
Geometry, Descriptive
