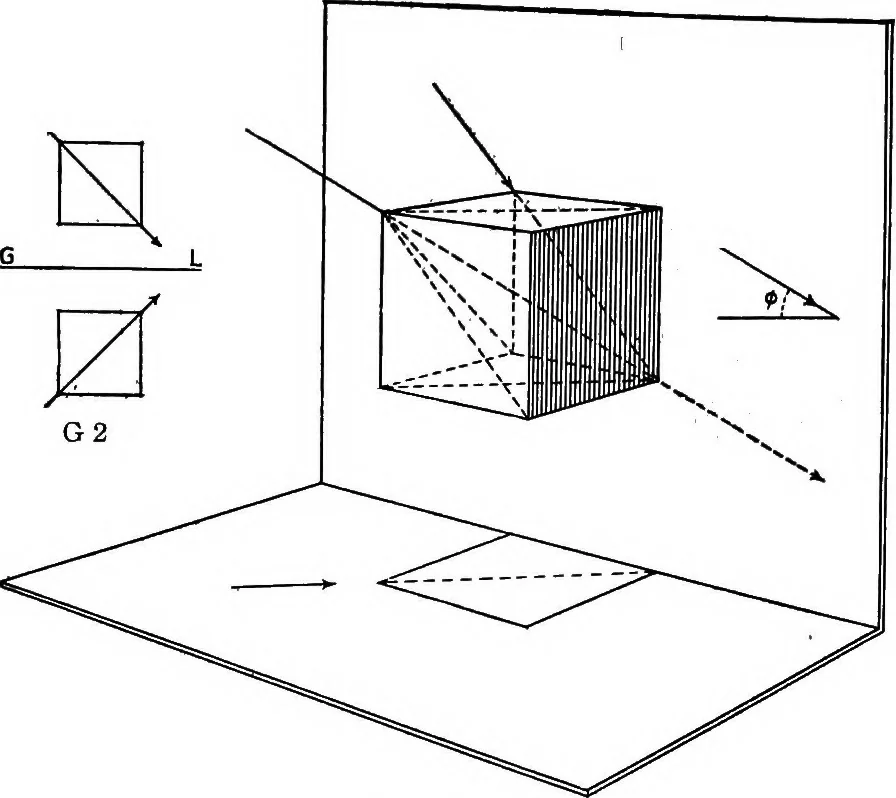

mployed to indicate the third dimensionor depth. They make a plan, or a second elevation, or an isometric or perspective drawing, the less necessary!Shades and Shadows, as a branch of Graphics, is an application of the methods of Projections and Per-spective to determine, first, the Shade upon any… … Fig. G1 any other object, that is to say, the shape of the Line ofShadow, which is the Shadow of the Line of Shade; andthirdly, the Projections, or Perspectives, of these Lines ofShade and of Shadow. The results obviously depend, first, on the shapes of theobjects in question and their attitude, or…
