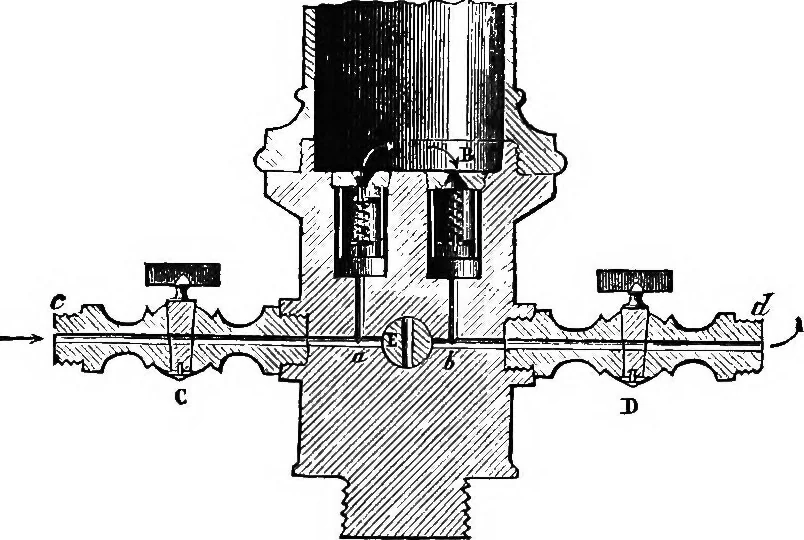

334 CHEMICAL PHYSICS. Pig. 306. They are made to fit exactly the conical openings at,the bottom of the cylinder, and are kept in place by very delicate … Fig. 306. spiral springs. When the piston rises, the ralvc A opens andadmits the air through the tube c a into the cylinder. On theother hand, when the piston descends, the valve A closes, whileB opens, and the air is forced out, through the tube b d, into thereceiver placed at d. It is evident,…
