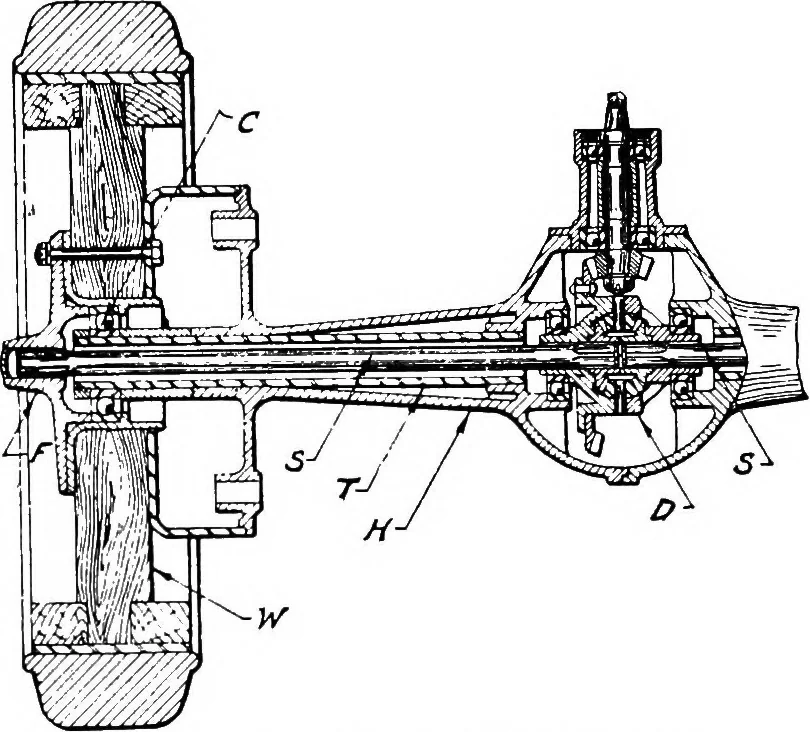

ead of on the axle shaft. While it might appear that theouter ends of the shafts were thus made free from all 552 MOTOR TRUCKS, TRACTORS AND TRAILERS loads, except turning the wheels, and consequently thatthis is a full-floating axle, such is not the case, as but onebearing is used in each wheel. A… … Fig. 7—Three-Quarters-Floating Axle part of these thrusts, and as it is rigidly connected to thewheel by a flange, it must be strong enough to resist thoseside thrusts which tend to bend it. Full-Floating Axle The full-floating axle (Fig. 8) is formed by adding asecond bearing to both wheel hubs of…
