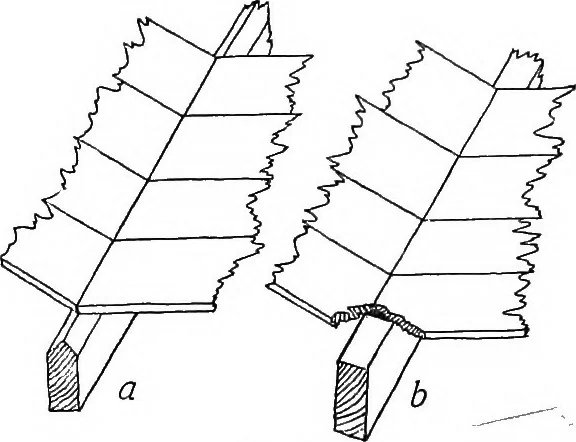

Cut OF VALUiTRafters. ROOF CONSTRUCTION 87 … Fig. 82.a, Backed Hip Rafter; &, Square Hip Hafter. in Fig. 81, to allow them to fit into the inside angle of the plate. (F.) Backing a hip rafter is illustrated by a, Fig. 82. The student should understand that as the rafter is meas-ured in the center of the top edge, which is the line of the…
