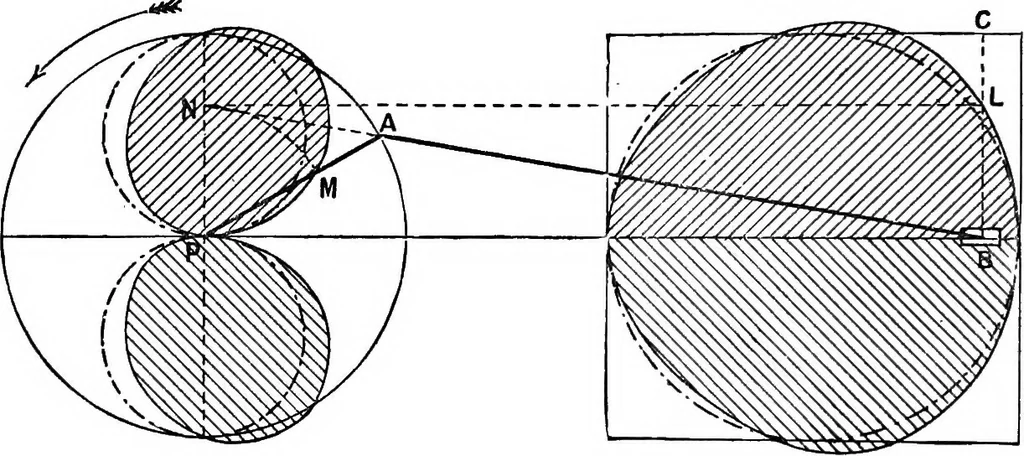

CHANISM. Full Discussion of the Mechanisms consisting of FotikLowEE Pairs. (1) Mechanism of Direct-acting Engine. § 113. Direct-acting Engine. Curves of Velocity. Dead Points.— Consider, first, the mechanism of the direct-acting engine. It has been shown (§ 108) that for any position of the crank… … Fm. 181. can best be seen by drawing a curve. Suppose, for example, thatthe crank shaft rotates with uniform angular velocity, and that,in all positions, the crank radius represents, on some scale, theconstant crank pin velocity; so that the velocity of the piston willbo represented by PN. In Fig.…
