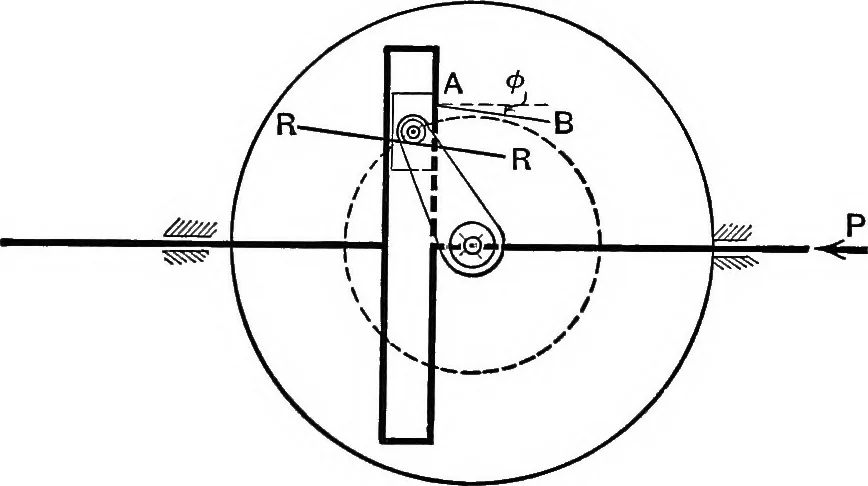

hding surfaces formingthe shding pair. This hnk should also be conceived asacted upon only by the forces transmitted by the pairsjoined by it; thus it is acted on by two forces only.An illustration of this kind of hnk is furnished in the 156 APPLIED STATICS mechanism for transforming rectiKnear… … Fig. iio If the crosshead drives towards the left as indicatedby the arrow P, then the block is pushed towards theleft and contact occurs on its right side. The forcetransmitted to the block by the crosshead will be towardsthe left. The motion of the block relative to the cross-head will be…
