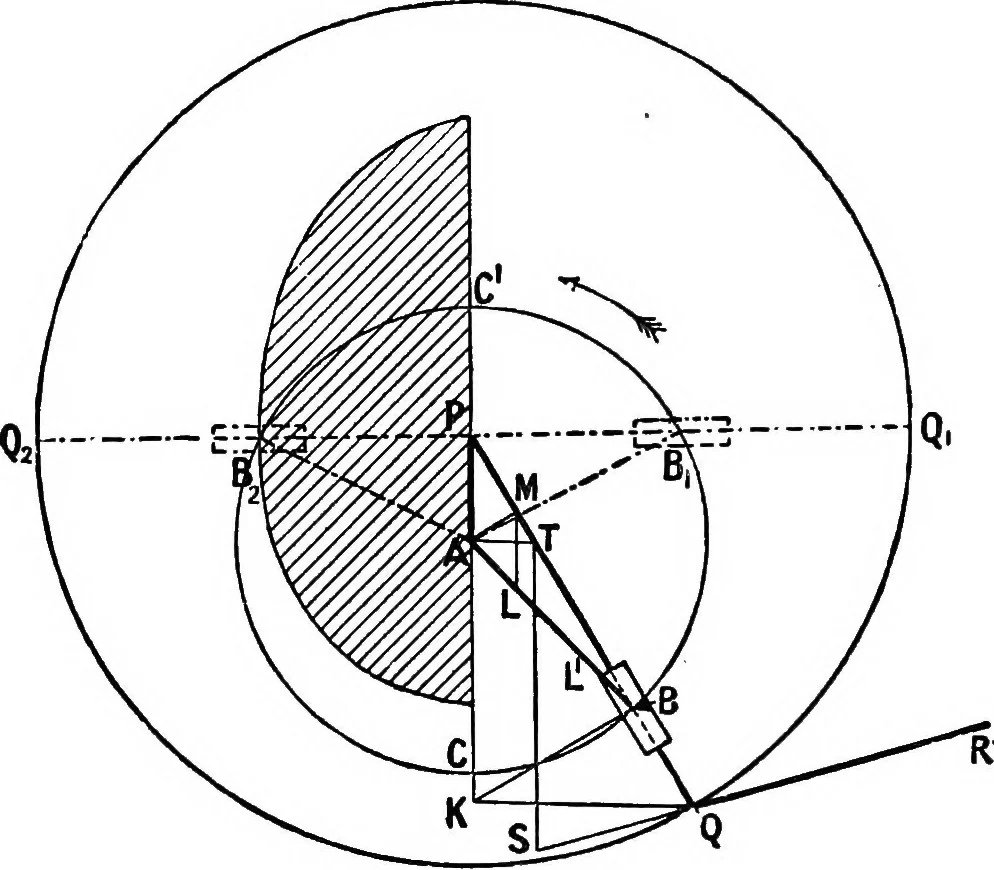

directionof the slot to meet the line of centres in K, so that (§ 108)— angular velocity of P _ KAangular velocity of A ~ KP If the shaft A rotate at a uniform rate, it is convenient to expressthe denominator of this fraction by a constant length, and oneway of doing so is to draw AM parallel to… … FiQ. 199. The maximum and minimum angular velocities of the arm PQ take place when B coincides with C and C respectively, and the ACangular-velocity ratios between the shafts P and A are then p™ AC and pp respectively—being greater than unity in the former, and less than unity in the latter,…
