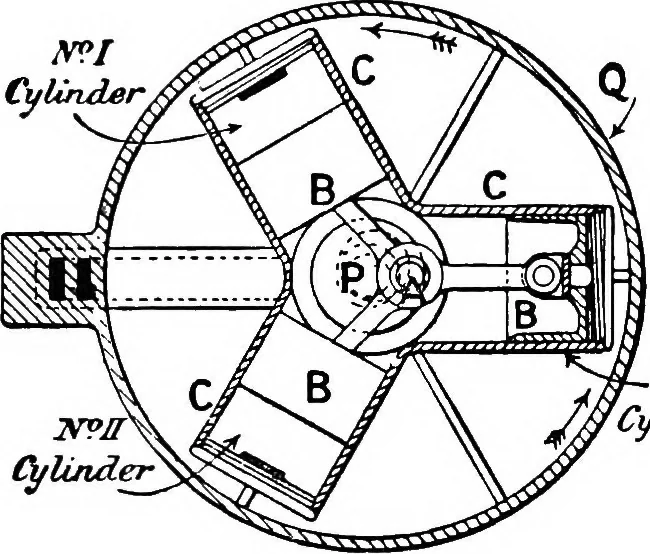

h-speed drill. Fig. 202 represents a sectionthrough the cylinders. It consists of a casing, Q, to which arerigidly attached three cylinders, C, set at 120° with each other.Each cylinder is provided with a piston, B, and all three connect-ing-rods lay hold of the same pin or stud, A which is fixed;… … (h/linder Cylinder Fia. 202. in which the block sliding over the link PQ is replaced by thepistons sliding in the cylinders—the mechanism simply beingrepeated as in a multiple-cranked engine. The cylinders aresingle acting, and the high-pressure air acts on the end of thepiston farthest from the…
