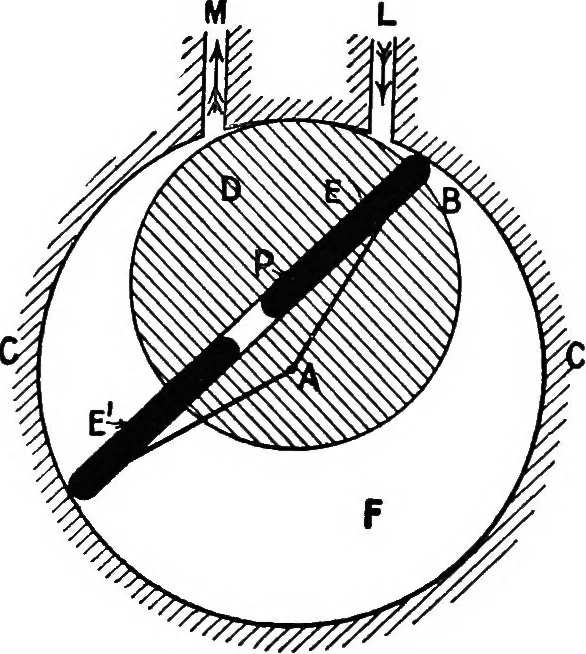

gth the same as that of the casing, slides in a diametralslot in the cylinder D, and is kept in contact with the casing C bymeans of the link AB. The passage L is in constant communicationwith the high-pressure air, and the passage M is likewise inpermanent communication with the atmosphere. The… … Fig. 204. igfi MECHANISM. but in this case the driver is the plate E, and the follower thecylinder D. If only one plate be used, when E passes the passageM there will be direct communication of the high-pressure airwith the atmosphere; and to prevent this, a double plate orpiston, E, is employed.…
