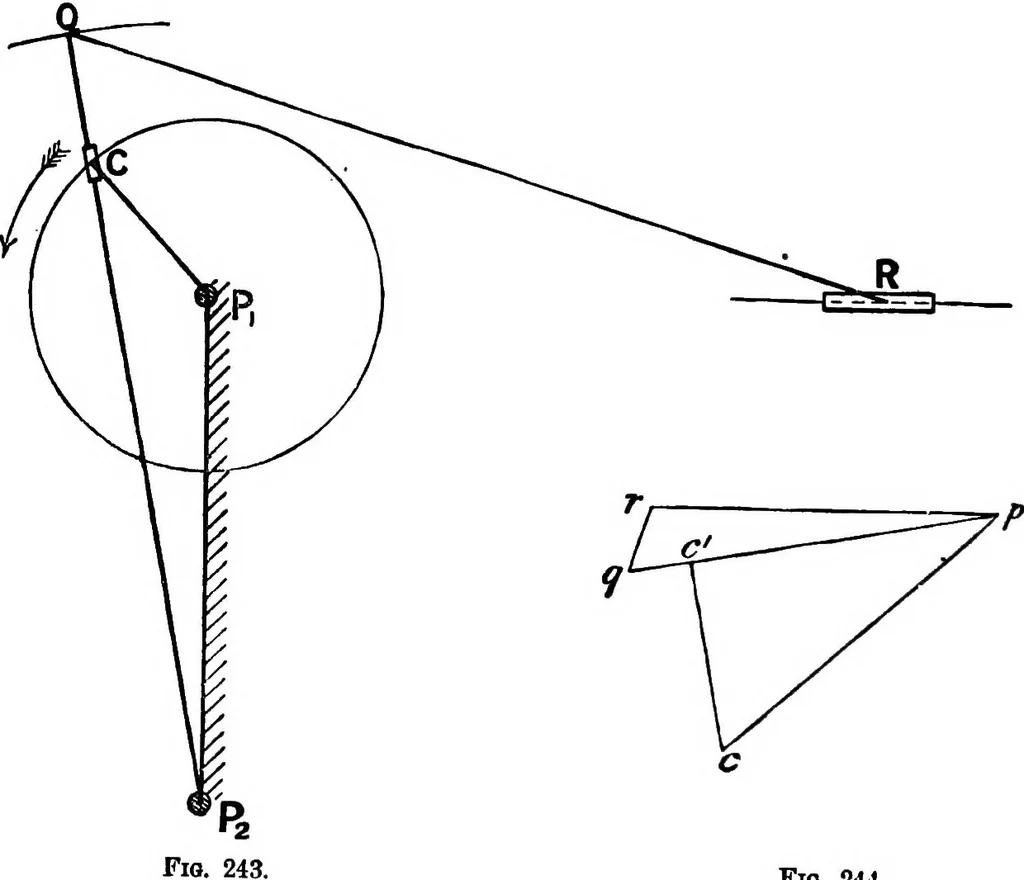

es by Pi and Pa (Fig. 243), and draw pa (Fig. 244) 224 MECHANISM. perpeadicular to PiO, to represent the velocity of C. Let thepoint in the lever PgQ immediately under the pin C be denotedby C. Clearly the point C is moving perpendicularly to P2Q,and the relative motion of 0 and G is in the… … Fio. 244. over the lever, and pd is the velocity of the point C, so thatp-^ is the angular velocity of the lever. To get the velocity of Q, represented by ^j, produce pd to y, and make ^ = ^^ The po PjCvelocity of the ram R is represented by ^r where qr is drawnperpendicularly to QR, and pr is…
