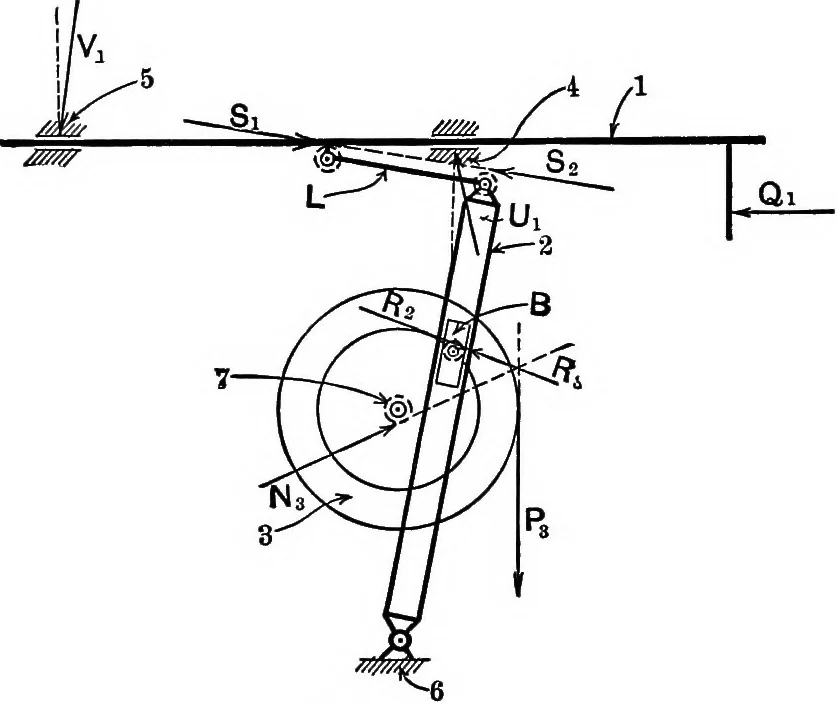

ned above, by- Pz imknown in magni-tude, and by a force N3 transmitted to it by the bearing(7) and passing thru the center of the bearing. Exercise 225. Find N3. Note that its direction istowards the right. l62 APPLIED STATICS Exercise 226. Modify the solution of Ex. 225 so as toinclude friction… … Fig. 112 In Fig. 112 the sketch of the mechanism is repeated.Here all dotted circles represent the friction circles ofthe turning pairs, all much exaggerated for the sake ofclearness. Again start with links (Z) and (B). The forces Siand ^2 now act along the friction axis of the link. (Seepage 153.)…
