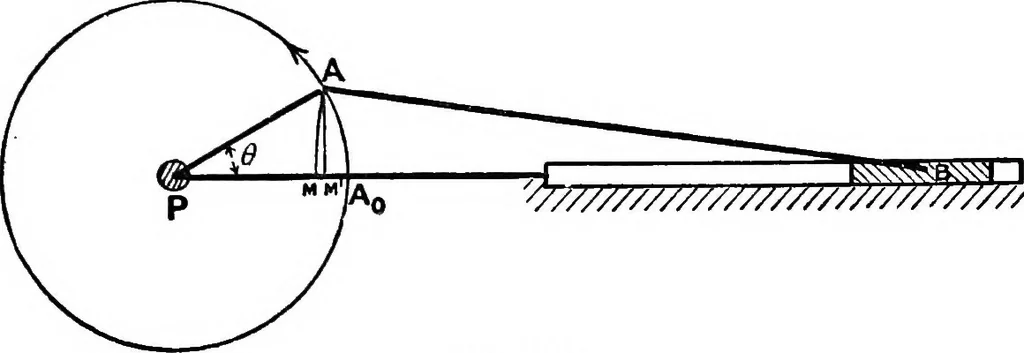

ion may be obtained as follows:— Let the mechanism be as sketched (Fig. 288), and let the crankangle 6 be measured from the inner dead centre. The displace-ment of the piston from the point of mid-stroke is PM, where BMis made equal to BA; or, in other words, the displacement of the ACCELERATION… … VZ/ FiQ. 288. may be imagined made up of two parts, namely, the primarydisplacement, AoM, due to the motion of the crank, and thesecondary displacement, MM, due to the obliquity of the rod. The primary displacement is equal to r(l — cos 0). Thesecondary displacement is equal to MM; that is to say,…
