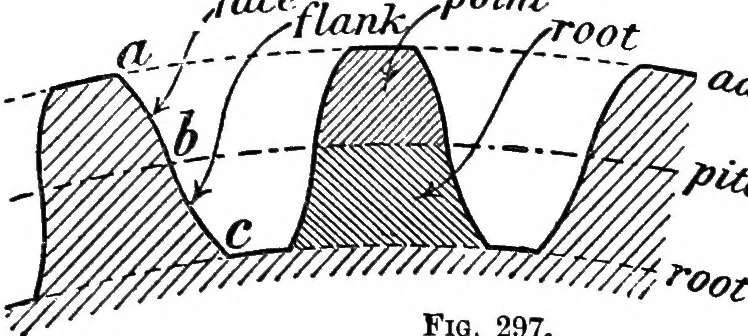

the rim perpendicularto the axis is shown in Fig. 297. Eeferring to that figure, theoutermost circle is called the addendum circle; the innermostcircle, the root circle; and the circle intermediate between thetwo, the pitch circle. The portion ah of the surface of the toothwhich lies between the… … «<^; Pitck, 0£f^ ■!?4 Fig. 297. ^>-^/^
