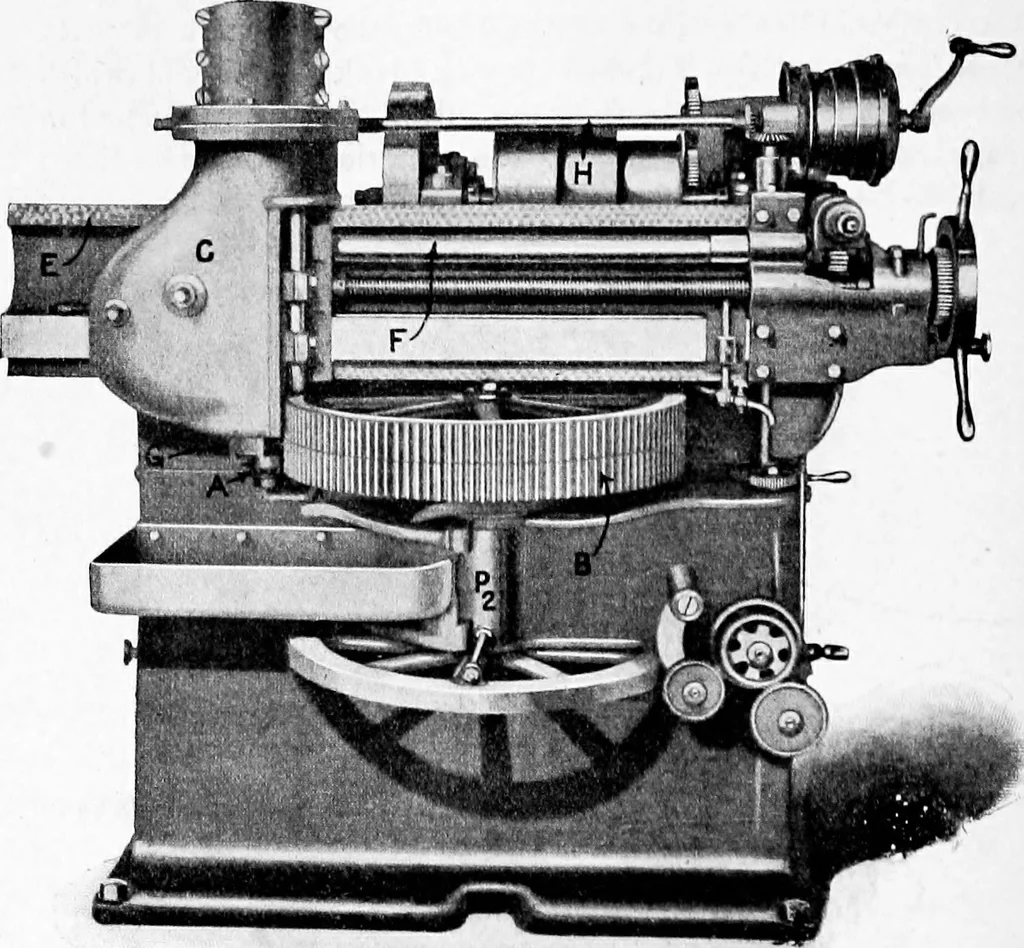

ia,nicalEngineer for August 18, 1906. 314 MECHANISM. to a ram or slide, G, enveloping the cutter spindle, the slide beingprevented from rotating, but capable of reciprocation in the saddleC. The spindle H carries a worm which meshes with a wormwheel attached to the cutter spindle by a feather key;… … Fig. 350. can rotate in it. The spindle H and the arbor Pa, to which theblank is attached, are connected by gearing, so that the motionsof rotation of the cutter A and blank B are exactly the same asif their pitch circles rolled on each other. These motions, asalready explained, are intermittent,…
