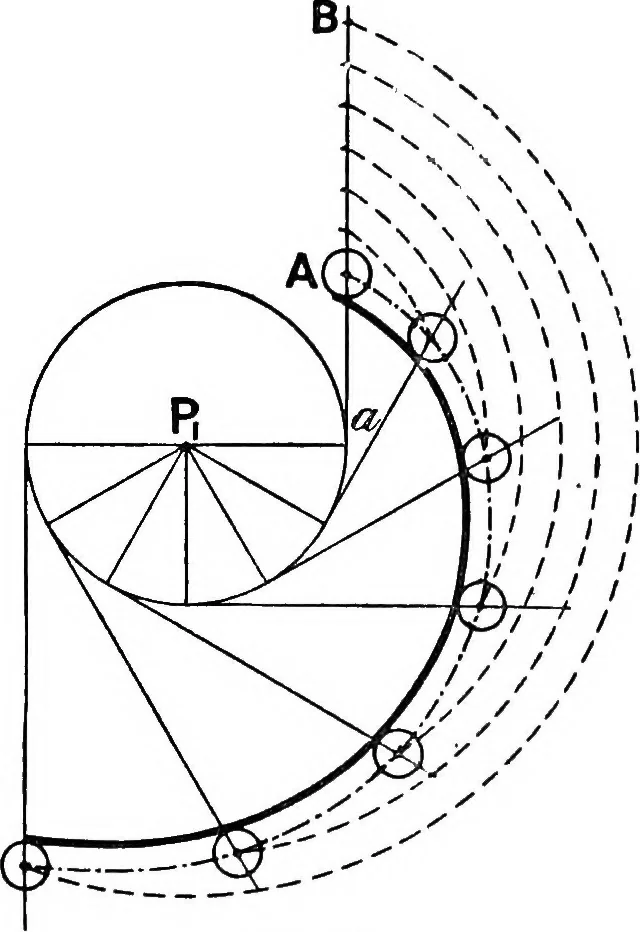

) bethe centre of the cam shaft,and AB the stroke of thereciprocating piece corre-sponding to a half-revolu-tion of the cam shaft.From Pi drop the perpen-dicular Pia on the line ofstroke produced, and in-stead of the cam shaftrotating and the line ofstroke being fixed in direc-tion, imagine the cam… … Fig. 399. . NON-CIRCULAR WHEELS. 361 radii draw tangents; these tangents will represent, relative tothe cam, successive positions of the line of stroke. Divide ABinto six equal parts, and draw circular arcs having Pi as centreand passing through the points of subdivision; the points ofintersection…
Machinery, Kinematics of
