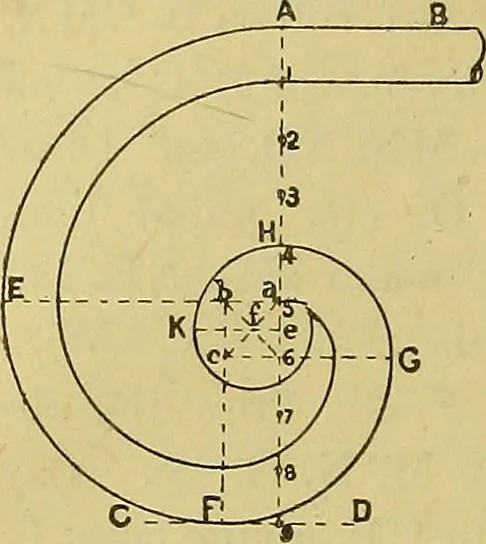

utside of the rail AB and the lineCD. Draw A9 perpendicular to ABand CD, and divide it into nine equalparts. On the sixth division as a sidedraw the square ahc^. With centre aand radius aA draw the quadrant AE.With centre 6 and radius 6E draw arcEF. With centre c and radius cF drawFG; with centre 6… … Prob. 109.being given. To construct a spiral, its greatest diameter AB Divide AB into eight equal partsby points 1, 2, 3, etc. On 45 as adiameter draw a circle CDEF. Thiscircle is the eye of the spiral. In-scribe a square CDEF, as shown inthe enlarged drawing of the eye. Drawthe central diameters…
Mechanical drawing
